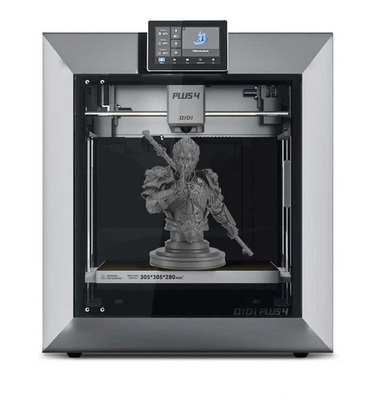

The QIDI Plus4 is the flagship CoreXY 3D printer featuring a revised active build chamber heating, reaching 65°C. QIDI uses a 400W heating element that reaches 65°C in just 8 minutes and distributes it evenly thanks to the air circulation fan.
The new bi-metal hotend with a 0.4mm nozzle made of hardened steel can now even reach 370°C. This is particularly advantageous for high-temperature filaments such as various nylon-carbon variants or especially PPS-CF in combination with the heated build chamber. Changing the nozzle or hotend is therefore no longer necessary.
The build space size for the Plus series has increased to 305 x 305 280 mm. Instead of 8mm, there are now 10mm guide rails and a 6mm thick print bed with PEI spring steel plate. QIDI uses hardened steel for the gears of the direct drive extruder (gear ratio: 8:9:1) and integrates a filament cutter. This means that an automatic loading and unloading process for filament is now available. I missed this when testing the QIDI X-MAX 3. There is also now an automatic nozzle self-cleaning function.
With the QIDI Plus4, the manufacturer has made further improvements: technically through improved active build space heating, a revised hotend, and a larger build space, but also visually! The QIDI Plus4 simply looks good. If it is just as well made and prints, this could be a big step forward for QIDI – especially if the customized Klipper software harmonizes perfectly with the Orca slicer.
| General | Brand: QIDI TECH Type: 3D Printer Model: PLUS4 Color: Silver |
| Specification | Print Size (W*D*H): 305*305*280mm XY Structure: CoreXY ZAxis: Dual Independent Lead Screw Motors 10mm linear shafts and screws Print Head Temperature: ≤370℃ Extruder Gear: Direct Extruder Hardened Steel Gears Nozzle: Bimetal Nozzle Nozzle Diameter: 0.4mm(0.2/0.6/0.8mm optional) Filament Diameter: 1.75mm Printing Platform: 6mm Aluminum Substrate Heating Bed Printing Plate: Dual-Sided Textured PEI Plate Hot Bed Temperature: ≤120℃ Max Speed of Tool Head: 600mm/s Acceleration: ≤20000mm/s^2 Operating System: Windows, MacOS, Linux Automatic Leveling: Hands-free Automatic Leveling Auxiliary Part Cooling Fan: Yes Chamber Circulation Fan: Yes (with activated carbon air filter) Chamber Temperature (PTC Heater): 2nd Gen Up to 65°C Independent Chamber Heating Supported Filament: PLA, ABS, ASA, PETG, TPU, PA, PC, Carbon/ Glass Fiber Reinforced Polymer, etc. Filament Cutter: Yes Filament Tangle Detection: Yes Filament Run Out Sensor: Yes Input Shaping: Yes Power Loss Recovery: Yes Voltage: 100-240VAC, 50/60Hz Rated Power: 450W+400(Chamber Heating) Display Screen: 5 Inch 800*480 Touch Screen Storage: 32G EMMC and USB2.0 Flash Drive Camera: Low Framerate Camera (Up to 1080P) Timelapse Supported Connectivity: WiFi 2.4G/Ethernet/USB Slicer: QIDI Studio and other third-party software, such as Orca, PrusaSlicer, etc. File Formats for Slicing: STL, OBJ, 3MF, STEP, STP |
| Weight & Size | Product Weight: 30kg Package Weight: 32kg Product Size(L x W x H): 50.5x48.7x55cm Package Size(L x W x H): 58x60x65cm |
| Package Contents | 1 x 3D Printer 1 x Filament Extension Bracket 1 x Extension Bracket Fixing Block 1 x Filament Spool Holder 1 x Holder Cover 1 x Touch Screen 1 x Door Handle 1 x Power Cord 1 x Ethernet Cable 1 x Allen Key H1.3 1 x Allen Key H1.5 1 x Allen Key H2 1 x Allen Key H2.5 1 x Allen Key H3 1 x 7mm Spanner 1 x Flat Head Screwdriver 1 x Scraper 1 x Glue Stick 1 x Spare Parts Kit 1 x USB 2.0 Flash Drive 1 x User Manual |
