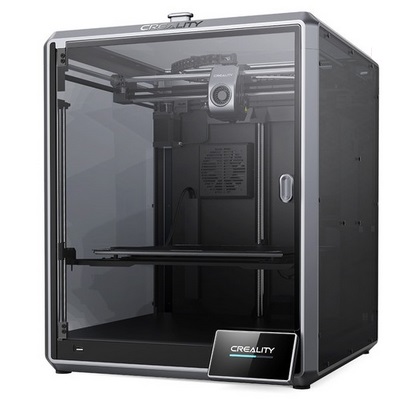

Creality K1 Max features a blazing print speed of 600mm/s. With a large-scale build volume of 300 x 300 x 300mm and a dual-gear direct extruder capable of heating up to 300 Degrees Celsius, Creality K1 Max will satisfy most of your printing requirements.
What are the upgrades over the old version? - The Nozzle was replaced by the Unicorn Quick Swap Nozzle.
K1 Max can reach 600mm/s in only 0.03s based on 20000mm/s² acceleration. It can be as productive as several 3D printers together. Also, it combines the nimble Core XY with a 190g lightweight printhead for less motion inertia.
Adopts new ceramic heater, encircling the entire hot end. It heats to 200 Celsius in 40 seconds and melts the filament instantly. The dual-gear direct extruder can deliver strong extrusion force. Hotend with a titanium alloy heat break and a hardened steel nozzle, working with flying colors in up to 300 Celsius.
K1 Max boasts a 300x300x300mm large build volume, great for rapid prototyping or design verification. It also offers a high build volume to printer size ratio of 25.5%, making it the most size-efficient FDM 3D printer in its class.
K1 Max 3D printer adopts the smart Creality OS. It features a straightforward UI, and syncs data and commands with PC, phone, Cloud, and add-on modules. An AI camera to watch over spaghetti failure, foreign objects, debris, etc. It will alert you when an error occurs. The 1 μm resolution LiDAR will scan the first layer on its own. It will pause printing and tell you immediately if something goes wrong.
First, strain sensors generate an accurate leveling mesh for auto compensation. Second, AI LiDAR scans the bed tilt at million points for more precise leveling. Both ways are hands-free and do not require any attention.
The latest self-developed slicer Creality Print 4.3 includes rich presets, and streamlines the slicing process into 3 simple stages. Besides, it bolsters high-speed printing with variable line width, arc path, and so on.
Once K1 Max is connected via WiFi or RJ45 Ethernet port to the LAN or Internet, you can monitor and control the printing from a PC or phone with Creality Print software or Creality Cloud. Even better, when many K1 Max printers are online, they can be easily clustered or grouped for volume production.
The motion advance function will deliver the optimal feeding flow. It reduces blobs and oozes effectively.
The upgraded Z-axis with more accurate positioning reduces Z-banding effectively. The texture has never been so subtle. A G-sensor in the printhead measures the resonance frequencies of high-speed printing, and auto-tune the printer to mitigate it. No more ghosting or ringing on the print.
A large fan on the printhead with air ducts cools the model directly. Also, there is an 18W auxiliary fan in the build chamber that enhances the cooling effect.
The built-in air filters will purify unhealthy compounds generated during printing, making printing much more pleasant.
600mm/s Printing Speed
Versatile AI LiDAR
Observant AI Camera
300*300*300mm Large Build Volume
CoreXY Structure
600mm/s Max Speed
20000mm/s2 Acceleration
32mm3/s Flow
Creality K1 Max reaches 600mm/s* in only 0.03s based on 20000mm/s² acceleration. It can be as productive as several 3D printers together.
* The typical speed is 300mm/s. The travel speed is 800mm/s.
* The 600mm/s speed is achieved at Creality Lab in the Surface Mode with 0.1mm layer height.
K1 Max combines the nimble Core XY with a 190g lightweight printhead for less motion inertia.
New ceramic heater, encircling the entire hotend. It heats to 200℃ in 40s and melts the filament instantly.
Dual-gear direct extruder, delivering strong extrusion force.
Hotend with a titanium alloy heatbreak and a hardened steel nozzle, working with flying colors in up to 300℃.
A large fan on the printhead with air ducts cools the model directly.
An 18W auxiliary fan in the build chamber enhances the cooling effect, too.
The model hardens before any stringing and warping could happen.
It allows support-free bridges and overhangs.
The latest self-developed slicer Creality Print 4.3 includes rich presets, and streamlines the slicing process into 3 simple stages.
Even better, it bolsters high-speed printing with variable line width, arc path, and so on.
K1 Max boasts a 300x300x300mm large build volume, great for rapid prototyping or design verification.
It also offers a high build volume to printer size ratio of 25.5%.
K1 Max is the most size-efficient FDM 3D printer in its class.
Al LiDAR
AI Camera
Creality OS
Multi-printers Controls
Still worry about the first layer? Just leave it all to the AI LiDAR of K1 Max.
The 1 μm resolution LiDAR will scan the first layer on its own. It will pause printing and tell you immediately if something goes wrong.
K1 Max uses an AI camera to watch over spaghetti failure, foreign objects, debris, etc.
It will alert you when an error occurs.
It also supports real-time monitoring and creates time-lapses for sharing.
K1 Max adopts the smart Creality OS. It features a straightforward UI, and syncs data and commands with PC, phone, Cloud, and add-on modules.
The snappy dual-core 1.2GHz CPU powers high-speed printing with ease.
The 8G ROM stores up to 400 model files and enables quick writing and reading.
Once K1 Max is connected via WiFi or RJ45 Ethernet port to the LAN or Internet, you can monitor and control the printing from a PC or phone with Creality Print software or Creality Cloud.
Even better, when many K1 Max printers are online, they can be easily clustered or grouped for volume production.
The frame of K1 Max is built with rigid die-cast aluminum alloy parts.
It enables steady printing at high speed. And the print quality is excellent the whole time.
The upgraded Z-axis with more accurate positioning reduces Z-banding effectively.
The texture has never been so subtle.
A G-sensor in the printhead measures the resonance frequencies of high-speed printing, and auto-tune the printer to mitigate it. No more ghosting or ringing on the print.
The motion advance function will deliver the optimal feeding flow. It reduces blobs and oozes effectively.
First, strain sensors in the heatbed generate an accurate leveling mesh for auto compensation.
Second, AI LiDAR scans the bed tilt at million points for more precise leveling.
Both ways are hands-free and do not require any attention.
K1 Max is assembled and calibrated before shipment and built-in with a boot-up quick guide.
You can start printing the moment your K1 Max arrives.
| General | Brand: Creality Type: 3D Printer Model: K1 Max Color: Black |
| Specification | Printing Technology: FDM Build Volume: 300*300*300mm Printing Speed: ≤600mm/s Acceleration: ≤20000mm/s2 Printing Accuracy: 100±0.1mm Layer Height: 0.1-0.35mm Extruder: Dual-gear direct drive extruder Filament Diameter: 1.75mm Nozzle Diameter: 0.4mm (swappable with 0.6/0.8mm nozzle) Nozzle Temperature: ≤300 Celsius Heatbed Temperature: ≤120 Celsius Build Surface: Flexible build plate Leveling Mode: Dual hands-free auto leveling File Transfer: USB drive, Ethernet, WiFi Display Screen: 4.3-inch color touchscreen Al Camera: Yes Al LiDAR: Yes Power Loss Recovery: Yes Filament Runout Sensor: Yes Air Purifier: Yes Input Shaping: Yes Lighting kit: Yes Sleep Mode: Yes Rated Voltage: 100-240V, 50/60Hz Rated Power: 1000W Supported Filaments: ABS, PLA, PETG, PET, TPU, PA, ABS, ASA, PC, PLA-CF, PA-CF, PET-CF Printable File Format: G-Code Slicing Software: Creality Print; compatible with Cura, Simplify3D, PrusaSlicer File Formats for Slicing: STL, OBJ, AMF UI Languages: Chinese, English, Spanish, German, French, Russian, Portuguese, Italian, Turkish, Japanese |
| Weight & Size | Product Weight: 18kg Package Weight: 23kg Product Size(L x W x H): 435*462*526mm Package Size(L x W x H): 508*508*608mm |
| Package Contents | 1 x 3D Printer 1 x Touch Screen 1 x Filament 1 x Set of Wrenches and Screwdrivers 1 x Blade 1 x Material Barrel 1 x Cutting Plier 1 x 1.2mm Nozzle Cleaner 1 x M6 Socket Spanner 1 x USB Flash Disk 1 x Glue Stick 1 x Lubricating Grease 1 x Power Cable 1 x User Manual |
