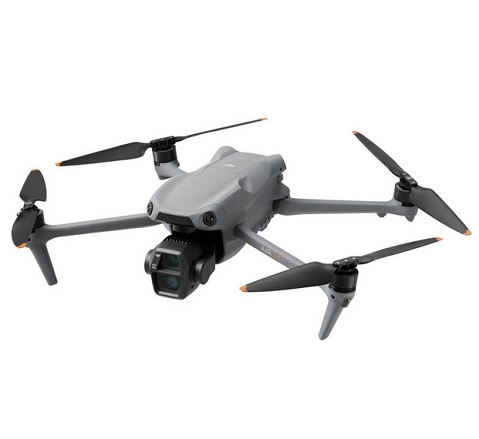

DJI AIR 3S 20KM FPV with 1″ CMOS Primary Dual Camera 4K 60fps HDR Video 14 Stops Dynamic Range Nightscape Omnidirectional Obstacle Sensing 45mins Flying RC Drone Quadcopter RTF
Specifications:
| Aircraft | Takeoff Weight | 724 g |
| Dimensions | Folded (without propellers): 214.19×100.63×89.17 mm (L×W×H) Unfolded (without propellers): 266.11×325.47×106.00 mm (L×W×H) | |
| Max Ascention Speed | 10 m/s | |
| Max Descent Speed | 10 m/s | |
| Max Horizontal Speed | At sea level, in windless conditions: 21 m/s* At sea level, with 6 m/s taiIwind, while flying in the same direction as the wind: 27 m/s* | |
| Max Takeoff Altitude | 6000 m | |
| Max Flying Time | 45 minutes | |
| Max Hovering Time | 41 minutes | |
| Max Flying Distance | 32 km | |
| Max Wind Speed Resistance | 12 m/s | |
| Max Pitch Angle | 36° | |
| Operating Temperature | -10° to 40° C (14° to 104° F) | |
| Global Navigation SateIIite System | GPS + Galileo + BeiDou | |
| Hovering Accuracy Range | Vertical: ±0.1 m (with vision positioning) ±0.5 m (with sateIIite positioning) Horizontal: ±0.3 m (with vision positioning) ±0.5 m (with sateIIite positioning) | |
| Internal Storage | 42 GB | |
| Class | C1 (EU) | |
| Camera | Image Sensor | Wide-Angle Camera: 1-inch CMOS, 50MP Effective Pixels Medium Tele Camera: 1/1.3-inch CMOS, 48MP Effective Pixels |
| Lens | Wide-Angle Camera FOV: 84° Format Equivalent: 24 mm Aperture: f/1.8 Focus: 0.5 m to ∞ Medium Tele Camera FOV: 35° Format Equivalent: 70 mm Aperture: f/2.8 Focus: 3 m to ∞ | |
| ISO Range | Video Normal: 100-12800 (Normal) 100-3200 (D-Log M) 100-3200 (HLG) Slow Motion: 100-6400 (Normal) 100-3200 (D-Log M) 100-3200 (HLG) Photo 100-6400 (12 MP) 100-3200 (48 MP and 50 MP) | |
| Shutter Speed | Wide-Angle Camera 12MP Photo: 1/8000-2s (2.5-8 s for simulated long exposure) 50MP Photo: 1/8000-2s Medium Tele Camera 12MP Photo: 1/16000-2s (2.5-8 s for simulated long exposure) 48MP Photo: 1/8000-2s | |
| Max Image Size | Wide-Angle Camera: 8192×6144 Medium Tele Camera: 8064×6048 | |
| Still Photography Modes | Wide-Angle Camera Single Shot: 12 MP and 50 MP Burst Shooting: 12 MP, 3/5/7 frames; 50 MP, 3/5 frames Automatic Exposure Bracketing (AEB): 12 MP, 3/5/7 frames; 50 MP, 3/5 frames at 0.7 EV step Timed: 12 MP, 2/3/5/7/10/15/20/30/60 s; 50 MP, 5/7/10/15/20/30/60 s Medium Tele Camera Single Shot: 12 MP and 48 MP Burst Shooting: 12 MP, 3/5/7 frames; 48 MP, 3/5 frames Automatic Exposure Bracketing (AEB): 12 MP, 3/5/7 frames; 48 MP, 3/5 frames at 0.7 EV step Timed: 12 MP, 2/3/5/7/10/15/20/30/60 s; 48 MP, 5/7/10/15/20/30/60 s | |
| Photo Format | JPEG/DNG (RAW) | |
| Video Resolution | Wide-Angle Camera/Medium Tele Camera: H.264/H.265 4K: 3840×2160@24/25/30/48/50/60/120*fps FHD: 1920×1080@24/25/30/48/50/60/120*/240*fps 2.7K Vertical Shooting: 1512×2688@24/25/30/48/50/60fps | |
| Video Format | MP4 (MPEG-4 AVC/H.264, HEVC/H.265) | |
| Max Video Bitrate | H.264/H.265: 130 Mbps | |
| Supported File System | exFAT | |
| Color Mode and Sampling Method | Wide-Angle/Medium Tele Camera Normal (FHD/2.7K): 8-bit 4:2:0 (H.264) Normal (FHD/2.7K): 10-bit 4:2:0 (H.265) HLG/D-Log M (FHD/2.7K): 10-bit 4:2:0 (H.264/H.265) Normal/HLG/D-Log M (4K): 10-bit 4:2:0 (H.265) | |
| Digital Zoom | Wide-Angle Camera: 1-2.9x Medium Tele Camera: 3-9x | |
| Gimbal | Stabilization | 3-axis mechanical gimbal (tilt, roll, pan) |
| Mechanical Range | Tilt: -135° to 70° Roll: -50° to 50° Pan: -27° to 27° | |
| Controllable Range | Tilt: -90° to 60° Pan: -5° to 5° | |
| Max Control Speed (tilt) | 100°/s | |
| Angular Vibration Range | ±0.0037° | |
| Sensing | Sensing Type | Omnidirectional binocular vision system, supplemented with forward-facing LiDAR and an infrared sensor at the bottom of the aircraft |
| Forward | Measurement Range: 0.5-18 m Detection Range: 0.5-200 m Effective Sensing Speed: Flight Speed ≤ 15 m/s FOV: Horizontal 90°, Vertical 72° | |
| Backward | Measurement Range: 0.5-18 m Effective Sensing Speed: Flight Speed ≤ 14 m/s FOV: Horizontal 90°, Vertical 72° | |
| Lateral | Measurement Range: 0.5-30 m Effective Sensing Speed: Flight Speed ≤ 14 m/s FOV: Horizontal 90°, Vertical 72° | |
| Upward | Measurement Range: 0.5-18 m Effective Sensing Speed: Flight Speed ≤ 6 m/s FOV: Front and Back 72°, Left and Right 90° | |
| Downward | Measurement Range: 0.3-14 m Effective Sensing Speed: Flight Speed ≤ 6 m/s FOV: Front and Back 106°, Left and Right 90° | |
| Operating Environment | Forward, Backward, Left, Right, and Upward: Surfaces with discernible patterns and adequate lighting (lux > 1) Downward: Surfaces with discernible patterns,diffuse reflectivity > 20% (e.g.walls, trees, people), and adequate lighting (lux > 1) | |
| 3D Infrared Sensor | Forward-Facing LiDAR Measurement Range (nighttime): 0.5-25 m (reflectivity > 10%) FOV: Up and Down 60°, Left and Right 60° Downward-Facing Infrared Sensor Measurement Range: 0.3-8 m (reflectivity > 10%) FOV: Front and Back 60°, Left and Right 60° | |
| Video Transmission | Video Transmission System | O4 |
| Live View Quality | Remote Controller: 1080p/30fps, 1080p/60fps | |
| Operating Frequency | 2.4000-2.4835 GHz 5.170-5.250 GHz 5.725-5.850 GHz | |
| Transmitter Power (EIRP) | 2.4 GHz: < 33 dBm (FCC) < 20 dBm (CE/SRRC/MIC) 5.1 GHz: < 23 dBm (CE) 5.8 GHz: < 33 dBm (FCC) < 30 dBm (SRRC) < 14 dBm (CE) | |
| Max Transmission Distance (unobstructed, free of interference) | FCC: 20 km CE: 10 km SRRC: 10 km MIC: 10 km | |
| Max Transmission Distance (unobstructed, with interference) | Strong Interference: Urban landscape, approx. 1.5-4 km Medium Interference: Suburban landscape, approx. 4-10 km Low Interference: Suburb/Seaside, approx. 10-20 km | |
| Max Transmission Distance (obstructed, with interference) | Low Interference and Obstructed by Buildings:Approx.0-0.5 km Low Interference and Obstructed by Trees:Approx.0.5-3 km | |
| Max Download Speed | O4: 10 MB/s (with DJI RC-N3) 10 MB/s (with DJI RC 2) Wi-Fi 5: 30 MB/s* | |
| Lowest Latency | Aircraft + Remote Controller: Approx. 120 ms | |
| Antenna | 6 antennas, 2T4R | |
| Wi-Fi | Protocol | 802.11 a/b/g/n/ac |
| Operating Frequency | 2.400-2.4835 GHz 5.725-5.850 GHz | |
| Transmitter Power (EIRP) | 2.4 GHz: < 20 dBm (FCC/CE/SRRC/MIC) 5.8 GHz: < 20 dBm (FCC/SRRC) < 14 dBm (CE) | |
| Bluetooth | Protocol | Bluetooth 5.2 |
| Operating Frequency | 2.400-2.4835 GHz | |
| Transmitter Power (EIRP) | < 10 dBm | |
| Battery | Capacity | 4276 mAh |
| Weight | Approx. 247 g | |
| Nominal Voltage | 14.6 V | |
| Max Charging Voltage | 17.2 V | |
| Type | Li-ion 4S | |
| Energy | 62.5 Wh | |
| Charging Temperature | 5° to 40° C (41° to 104° F) | |
| Charging Time | Approx. 80 minutes (with DJI 65W Portable Charger) Approx. 60 minutes (with DJI 100W USB-C Power Adapter and Battery Charging Hub) | |
| Charger | Input | DJI 65W Portable Charger: 100-240 V (AC), 50-60 Hz, 2 A DJI 100W USB-C Power Adapter: 100-240 V (AC), 50-60 Hz, 2.5 A |
| Output | DJI 65W Portable Charger: USB-C 5 V, 5 A 9 V, 5 A 12 V, 5 A 15 V, 4.3 A 20 V, 3.25 A 5-20 V, 3.25 A USB-A 5 V, 2 A DJI 100W USB-C Power Adapter: Max 100 W (total) | |
| Rated Power | DJI 65W Portable Charger: 65 W DJI 100W USB-C Power Adapter: 100 W | |
| Battery Charging Hub | Input | USB-C: 5-20 V, max 5 A |
| Output (power accumulation) | Battery Port: 12-17.2 V, 3.5 A | |
| Output (charging) | Battery Port: 12-17.2 V, max 5 A | |
| Output (USB) | USB-C: 5 V, 3 A 9 V, 5 A 12 V, 5 A 15 V, 5 A 20 V, 4.1 A | |
| Charging Type | Three batteries charged in same time | |
| Compatibility | DJI Air 3 Intelligent Flight Battery DJI Air 3S Intelligent Flight Battery | |
| Car Charger | Input | Car Power Input: 12.7-16 V, 6.5 A, rated voltage 14 V (DC) |
| Output | USB-C: 5 V, 5 A 9 V, 5 A 12 V, 5 A 15 V, 4.3 A 20 V, 3.25 A 5-20 V, 3.25 A USB-A: 5 V, 2 A | |
| Rated Power | 65 W | |
| Charging Temperature | 5° to 40° C (41° to 104° F) | |
| DJI RC-N3 Remote Controller | Max Operating Time | Without Charging Any Mobile Device: 3.5 hours When Charging a Mobile Device: 1.5 hours |
| Max Supported Mobile Device Size | 180×86×10 mm (L×W×H) | |
| Operating Temperature | -10° to 40° C (14° to 104° F) | |
| Charging Temperature | 5° to 40° C (41° to 104° F) | |
| Charging Time | 2 hours | |
| Charging Type | It is recommended to use a 5V/2A charger. | |
| Battery Capacity | 9.36 Wh (3.6 V, 2600 mAh) | |
| Weight | Approx. 320 g | |
| Dimensions | 104.2×150×45.2 mm (L×W×H) | |
| Supported Mobile Device Port Type | Lighting, USB-C, Micro-USB | |
| Video Transmission Operating Frequency | 2.4000-2.4835 GHz 5.170-5.250 GHz 5.725-5.850 GHz | |
| Video Transmission Transmitter Power (EIRP) | 2.4 GHz: < 33 dBm (FCC) < 20 dBm (CE/SRRC/MIC) 5.1 GHz: < 23 dBm (CE) 5.8 GHz: < 33 dBm (FCC) < 14 dBm (CE) < 30 dBm (SRRC) |
Features:
1. The one-inch CMOS main camera has 14 stops of dynamic range, 3.2μm large pixels, 24mm equivalent focal length, 50 million pixels and other features, which can not only stunningly present vast scenery, but also capture purer sunset and night landscapes.
2. Using a 48-megapixel 1/1.3-inch CMOS, the video specifications and color mode are the same as the main camera, and it can also bring 3x optical zoom, making it easy to shoot expressive portrait close-ups.
3. Both cameras can record 10-bit video using H.265 encoding in normal mode, and support 4K/60fps HDR, 4K/120fps video recording and 10-bit D-Log M color mode.
4. Air3S is DJI's first drone that supports the free panorama function, and both cameras can shoot. You can use the remote control to freely select the shooting area in the AR preview screen, and it will automatically take multiple photos and synthesize a panoramic picture.
5. Equipped with forward-facing laser radar, downward-looking infrared ToF sensor and three pairs of visual sensors on the fuselage, it can achieve omnidirectional active obstacle avoidance at night scene level, actively identify and avoid obstacles such as buildings, and make night scene shooting safer.
6. It can memorize the flight route in an environment with good lighting conditions. Even if it takes off in a scene without sateIIite signal such as a balcony, it can return safely.
7. The ultra-long battery life of 45 minutes provides sufficient time for scene survey, composition, and camera movement, allowing you to shoot more happily.
8. Using DJI O4 image transmission technology, it can achieve 20 kilometers of 1080p/60fps 10-bit image transmission, the picture is smoother and more beautiful, and the signal is more stable.
Package Included:
AIR 3S (RC-N3): 1 x AIR 3S Aircraft 1 x DJI RC-N3 Remote Controller 1 x Intelligent Flight Battery 1 x Pair of Spare Propellers 1 x Type-C to Type-C PD Cable 2 x RC Cable 1 x Gimbal Protector AIR 3S Fly More Combo (DJI RC-N3): 1 x AIR 3S Aircraft 1 x DJI RC-N3 Remote Controller 3 x Intelligent Flight Battery 1 x Battery Charging Hub 3 x Pair of Spare Propellers 1 x Type-C to Type-C PD Cable 2 x RC Cable 1 x ND Filter Set (ND8/32/128) 1 x Gimbal Protector 1 x DJI Shoulder Bag AIR 3S Fly More Combo (DJI RC 2): 1 x AIR 3S Aircraft 1 x DJI RC 2 Remote Controller 3 x Intelligent Flight Battery 1 x Battery Charging Hub 3 x Pair of Spare Propellers 1 x Type-C to Type-C PD Cable 1 x ND Filter Set (ND8/32/128) 1 x Gimbal Protector 1 x DJI Shoulder Bag
