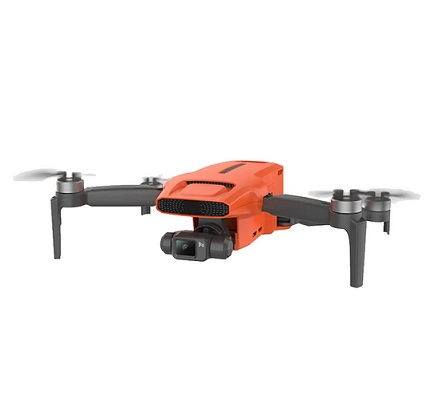

FIMI MINI 3 SE SoLink 9KM FPV With 4K 30fps Camera 3-axis Mechanical Gimbal 29mins Flight Time Visual Tracking 250g Ultralight Foldable RC Drone Quadcopter RTF
Specifications:
Aircraft |
Dimensions (without propellers) |
145 x 85 x 56mm (Folded) 200 x 145 x 56mm (Unfolded) |
| Color |
Orange | |
| Diagonal Distance |
214mm | |
| Takeoff Weight (with battery) |
Approx. 245g | |
| Max Ascension Speed |
4m/s | |
| Max Descent Speed | 2m/s | |
|
Max Flying Speed |
16m/s (in a windless environment at sea level ) | |
| Max Takeoff Altitude |
≤ 4000m | |
| Hovering Accuracy |
Vertical: ±0.1m (when Vision Positioning is active) ±0.5m (when GPS Positioning is active) Horizontal: ±0.3m (when Vision Positioning is active) ±0.5m (when GPS Positioning is active) | |
| Max Tilt Angle |
35° | |
| Max Wind Speed Resistance | 10.7m/s | |
| Max Hovering Time | 29 minutes | |
| Maximum Flight Time |
32mins | |
| GNSS | GPS/Galileo/BeiDou/GLONASS | |
| Operation Frequency |
5.725 - 5.825GHz | |
| Operating Temperature |
0~40℃ | |
Gimbal Camera |
Three-axis Mechanical Gimbal |
-110° ~ 40° (Pitch) -40° ~ 40° (Roll) -40° ~ 40° (Yaw) |
| Controllable Rotation Range |
10° ~ -90° (Pitch) | |
| Angular Vibration Range |
±0.01° | |
| Image Sensor |
1/2.5-inch CMOS | |
| Lens |
FOV 94° | |
| Aperture |
F / 2.2 | |
| Format Length |
2.35mm | |
| Format Equivalent |
20mm | |
| Focus | 0.8m to ∞ | |
| Effective Pixels |
12 million pixels | |
| ISO Range |
Video 100-6000 Photo 100-6400 | |
| Shutter Speed |
1/8000s - 2s | |
| Max Photo Size |
4000 x 3000 | |
| Max Video Resolution |
3840 x 2160 @30/25/24fps | |
| Max Video Bitrate |
100Mbps | |
| Supported File System |
FAT32/exFAT | |
| Photo Format |
JPEG | |
| Video Format |
MP4 | |
| Digital Zoom |
6X | |
| Recommended Memory Card |
Micro SD 8-256GB (U3 and above) | |
Remote Controller |
Model |
FMYKQ04A3 |
| Weight |
About 260g | |
| Dimensions |
165 x 89 x 47mm | |
| Operation Frequency |
2.4000 GHz - 2.4835 GHz 5.725 GHz - 5.850 GHz | |
| Battery Type |
Li-ion | |
| Capacity |
3500mAh | |
| Nominal Voltage |
3.7V | |
| Input |
5V=2A | |
| Max Battery Life | 8 hours (without charging the mobile device) 4 hours (charging the mobile device) | |
| Max Signal Effective Range FCC (No interference, No obstruction) |
Approximately 9KM | |
| Minimum Latency |
Approx. 120 milliseconds | |
| Supported Mobile Device Interface Types |
Lighting,USB-C | |
| Operating Temperature |
0 - 40℃ | |
| Charging Temperature | 5 - 40℃ | |
Intelligent Flight Battery |
Battery Type |
Li-ion 2S |
| Weight |
Approx. 85g | |
| Capacity |
2200mAh | |
| Nominal Voltage |
7.7V | |
| Charging Limited Voltage |
8.8V | |
| Energy |
16.92Wh | |
| Charging Temperature Range |
5 - 40℃ | |
APP |
FIMI Navi Mini Mobile Device System Requirements |
iOS 12.0 or later, Android 9.0 or later |
Features:
1. 250g-Class Ultralight Design
With a compact and lightweight design under 250g, it doesn’t require training, exams, or flight permits in most areas. It’s as small as a smartphone, highly portable, and folds easily for storage, letting you fly anytime and anywhere you want. *Please refer to local regulations for actul usage.
2. 4K/30fps Video
Capture stunning high dynamic range video in 4K at 30fps, with each frame showcasing fine details. Even the smallest elements are vivid and in 4K ultra-high definition, making every recording appear as a real moment before your eyes.
3. 9km Video Transmission
The FIMI Mini 3 SE, featuring the new SoLink HD digital transmission technology, offers real-time high-definition transmission up to 9 kilometers away. It supports dual-band switching between 2.4GHz and 5.8GHz, and advanced encoding and decoding optimization techniques reduce latency to just 120 milliseconds. This ensures stable, smooth video transmission and an immersive flying experience.
4. Support USB Type C Fast-Charging
The USB Type C charging port on the battery supports 9V/3A rapid charging. This enables you to experience fast and convenient charging wherever you are, allowing you to charge your spare batteries effortlessly even while your drone is in flight.
5. Visual Tracking and Other Flight Modes
Supports multiple intelligent flight modes, such as the smart tracking modes, powerful flight plan shooting, SAR mode, precision landing, timelapse, one-tap video, panorama and so on.
Function: 9KM Distance, 3-axis Gimbal, 29-Minute Flight Time, 250g-Class Ultralight Design, Smart Tracking Modes, One-Tap Video, Night Shooting, Powerful Flight Plan Shooting
Package Included:
Two Batteries Version:
1 x MINI 3 SE Quadcopter (with camera)
1 x Remote Controller
2 x Battery
1 x USB Cable
2 x Spare Propeller
2 x RC Connected Cable
1 x Gimbal Cover 1 x Manual
