Description:
| Basic information |
Brand:HG Item No:P411 Speed:3.4km/h(low gear) 8.5km/h(high gear) |
Power System |
ESC:45A independent esc speed controller Motor:540 brushed motor(strong magnetic 12000rpm) Servo:9KG waterproof alloy gear digital servo |
| Transmitter |
Frequency: 2.4G Channel:16CH Battery:6X 1.5V AA batteries(not included) |
Battery |
Not Included Battery for the Trailer:7.4V 4500mAh 30C Lipo battery(not included) Required Charging Time:About 4 hours Support Playing Time:About 30 minutes |
| Other |
MaterialL:Hardware,plastic and electronic components Low Gear:1:78.26 High Gear:1:31.3 Standard Car Weight:Around 6500g Upgraded Car Weight:Around 7000g |
Dimension |

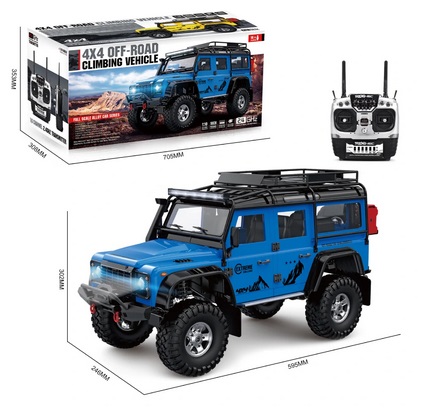

Car Size:595*246*320mm Wheelbase:281mm Wheels Track:149.5mm Wheels Diameter:118mm Box Size:750*308*353mm |
Features:
1. 45A ESC: can switch between brake and no brake mode, and switch between Li-PO and NI-HM lithium battery protection modes
a. ESC with low-voltage protection: When the battery voltage is too low, the ESC will start power-off protection
b. High temperature protection: When the working temperature of the ESC is higher than the set value, the ESC will start power-off protection; when the temperature drops to the normal value, it will return to normal
"2. The portal axle structure also adopts the wheel side reducer structure. Such an axle structure can greatly improve the ground clearance of the chassis
3. The remote electric differential lock structure can independently lock or unlock the front and rear axle differentials to meet the needs of more terrain
4. Adjustable shock absorber, the best shock absorption effect can be obtained by adjusting the length of the shock absorber ring to compress or release the spring
5. The remote electric two-speed transmission ratio can be switched arbitrarily (TOP GEAR 1:31.3 LOW GEAR 1:78.26)
6. The throttle drive is adjusted in the middle position, the brake or no brake mode is switched, and the forward and reverse switching
7. Steering percentage amplitude adjustment, angle percentage and gearing percentage amplitude adjustment, forward and reverse switching
8. The simulated lighting system and simulated sound system are suitable for any model car on the market (sold separately)
9. Remote smoke generator control, close-open (sold separately)
10. Universal metal transmission rod with variable stroke
11. 2.4G-16 channel full scale remote control system
Package Included:
1X RC Car(do not include the battery and charger)
1X Operating Instructions
12X Nylon Cable Ties 3*150mm
1X P411 Car Shell Sticker
1X 1.5mm Socket Head screwdriver
1X 2.0mm Socket Head Screwdriver
1X 2.5mm Socket Head Screwdriver
1X Cross Hexagon (Small)
1X Open End Wrench (Small)
2X Sponge Double-sided Stickers
1X Fuel Tank Base
1X Exhaust Vent
1X Wheel Assembly
1X Lifts
1X Fuel Tank
1X Rear Fender Bracket L/R
1X Front Fender Bracket L/R
1X Spare Tire Bracket Assembly
1X Mirror Assembly L/R
2X Fender R
2X Fender L
3X Flanged Nylon Toothed Lock Nut
2X Cutting-Edge Machine Meters
2X Latch Screw (ø2.5x11mm x M3)
2X Latch Screw (ø2.5x12mm x M4)
16X Hexagon Socket TM Wire (ø2x4mm)
1X Hexagon Socket Head HB Screw (ø2x6mm)
2X Hexagon Socket Head KB Screw (ø2.6x8mm)
3X Hexagon Socket Head TB Screw (ø2.6x8mm)
2X Cross PB Screw (ø1.7x8mm)
