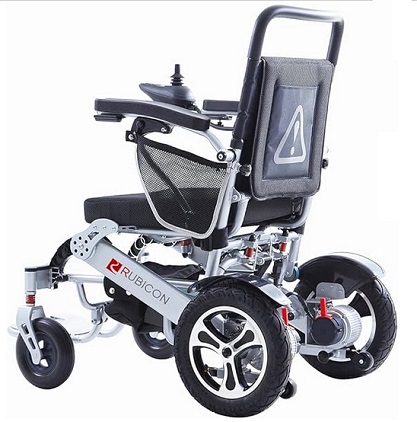

About RUBICON DX14

✔ Manual / electric dual-mode switching, which can be switched at any time as needed.

✔ 360 degree Intelligent controller, stable start, stable gear shift.

✔ The electromagnetic brake system stops immediately after being released, safe and reliable.

✔ The Next Generation first class of Deluxe and Foldable Electric Power Wheelchairs

✔ An expertly designed and extremely well crafted frame for comfortable riding, supporting users up to 330 pounds to not only meet, but exceed the growing demands and expectations of users who cherish independence, mobility and comfort.

✔ Made for both indoor and outdoor navigating through tight spaces with excellent turning radius, and outdoor equipped with 8" Front and 12.5" Rear Wheels making it’s possible riding thru off-paved surfaces easily.

Sizing & Weight Information

✔ Weight (without battery) is around 64 lbs

✔ Weight Capacity : 330 lbs

✔ Travel Speed: 4 MPH (Adjustable)

✔ Travel Distance up to 18 miles

✔ Climbing Slope: 12° Max

✔ Battery: Type Super Lithium-Ion LiFePO4

✔ Battery Capacity: 24V 20AH

✔ Battery Voltage Output: DC 24V

✔ Detachable Battery with Off-board charging capability

✔ Motor Power: 300W*2

✔ Motor Voltage : DC 24V

✔ Controller Power: AC 100-220V, 50-60Hz

✔ Voltage Output Current: DC 24V, 2A

✔ Battery Charging Time: 6-8 Hours

✔ Turning Radius: 33"

✔ Ground Clearance: 3.7"

✔ Box 30" x 18" x 33"
