The Whale Scanner features two independent cores for ultra-high accuracy of up to 0.05mm. The dual cores allow complex shapes and surfaces to be scanned quickly, creating models with an HD scanning resolution of 0.2 mm. The Whale Scanner can be used to capture both large components and small details.
Scans in bright light even in full sunshine, scans dark colors, even completely black objects.
JMStudio is 3DMakerpro's exclusive software that converts captured scan data into 3D models. The user-friendly software supports standard output formats such as OBJ, STL, ASC, and PLY.
The intelligent algorithm makes 3D scanning as easy as shooting a video. Stick markers are no longer needed, even for big parts like engine hood, car door, front or rear bumpers, and so on.
Its precision accuracy and high resolution make the Whale Scanner suitable for many applications, especially those that require a high level of complexity. Including reverse engineering, Industry, medical, etc.
| General | Brand: 3DMakerpro Type: 3D Scanner Model: Whale Premium Edition Color: Black |
| Specification | Accuracy: 0.10mm (wide-core), 0.05mm (micro-core) Resolution: 0.50mm (wide-core), 0.20mm (micro-core) Work Distance: 650±250mm (wide-core), 300±100mm (micro-core) Single Capture Range: 530x370mm (wide-core), 200x100mm (micro-core) Frame Rate: 10fps Light Source: NIR Alignment: Yes Texture Scan: Automatic matching Output format: OBJ/STL/ASC/PLY Required PC: WIN10 64bit/MacOS 12 (support M1) |
| Weight & Size | Product Weight: 1.5kg Package Weight: 5.5kg Product Size(L x W x H): 23x14.8x18.8cm Package Size(L x W x H): 36x33x27cm |

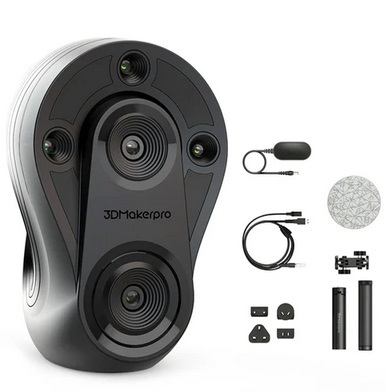

| Package Contents | 1 x Whale 3D Scanner 1 x Power Adapter 1 x Data Cable 4 x Plug 1 x Tripod 1 x Turntable 1 x Turntable Cable 1 x User Manual |
