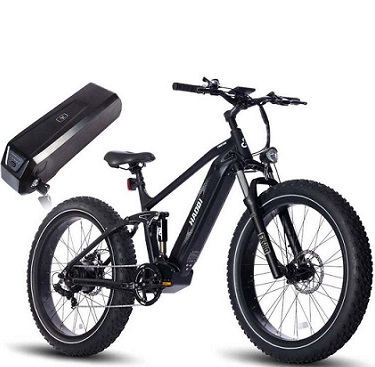

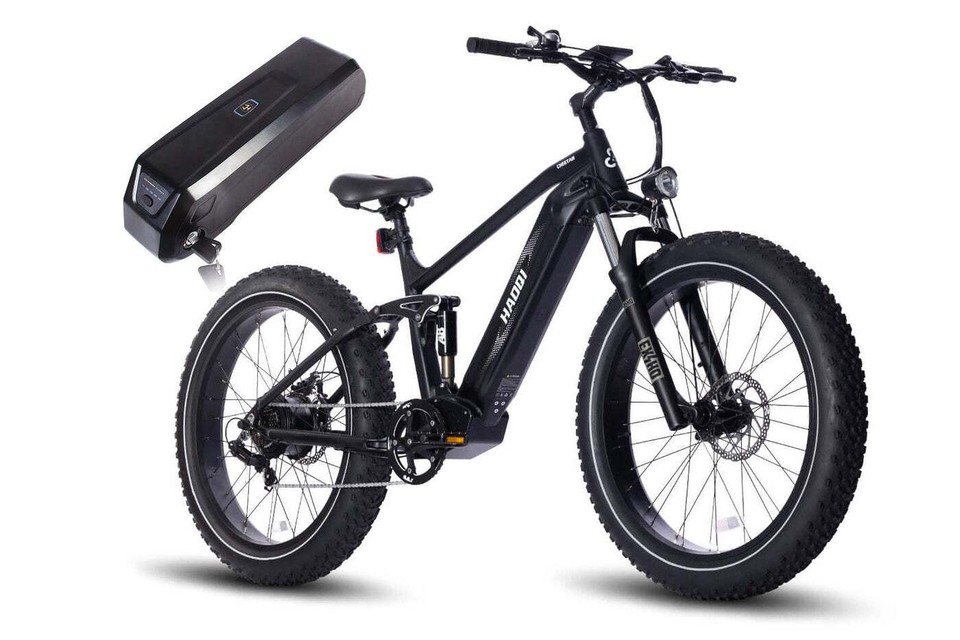

HAOQI Cheetah Full Suspension Electric Bike Dual Battery Version
- 750WGeared Hub Motor
- 48V 16Ah / 25AhHigh-Tech Battery
- 35~90 MilesPer Charge(estimate)
- Shimano7 Speed
- 6061 Aluminum26'' Frame
- 350 LBSPayload Capacity
What's inside the box?
- HAOQI Cheetah Full Suspension Electric Bike
- 25Ah Dual Battery
- Fenders
- Rear rack
SpecificationBattery 48V 16Ah / 25Ah High-tech Lithium Battery
- Motor 750W High Speed Brushless Geared Motor
- Bike Frame 26” * 18” AL6061 M Mode
- Display KT-LCD10H E-bike Display USB
- Charger US Standard 2.0A Smart Charger
- Rear Cassette Shimano 7 Gears
- Pedal Assist Intelligent 5 Level Pedal Assist
- Tires 26” x 4”
- Charging Time 6~9 Hours
- Product Weight 73 Ibs
- Recommended Rider Heights 5.5” ~ 6.8”
- Total Payload Capacity 350 Ibs
ComponentsBrake lever Alu alloy comfort grip levers with motor cutoff switch
- Chain KMC chain
- Freewheel Shimano 7 speed gear shift system
- Brake GEMMA mechanic 180mm discs
- Stem Promax MA-400 SSABK
- Crank 170mm Forged Alloy
- Gearing Shimano- 14-28T BROWN/BK
- Front Fork RST Alloy front suspension fork with lockout and adjustment
- Rear Suspension FASTACE A8 / 850Bls / 185mm Length - Travel 50mm
- Throttle Half twist throttle
- Pedal Alloy pedal with reflectors
- Bike Frame 6061 Aluminum frame
- Headlight 48V LED light
- Handlebars Premium ergonomic
- Saddle Soft saddle
- Kickstand Heavy duty aluminum
- Seat post Diameter 30.4mm length 300mm
- Spokes Alloy Mag wheel
GeometryA -- Total Length 73.6"
- B -- Wheelbase 52"
- C -- Wheel Diameter 28"
- D -- Chain Stay Length 21"
- E -- Top Tube Length 24.6"
- F -- Handlebar Height 43"
- G -- Standover Height 31"
- H -- Handlebar Length 28"
- I -- Standover Height 29"
- J -- Maximum Seat Height 41"
- K -- Minimum Seat Height 34"
This item is UL 2849 certified
