Features:
- 6 inch drone re-engineered: This drone was specifically designed for 6 inch
- H-shaped frame with robust middle section for less props in view while remaining stiffness
- XT60 front-mount: Compare to other drones the mount sits in the front and gives more space on the back.
- Built in BEC to directly power for gopro (no battery needed)
- Hy motor design: This motor is optimized for 6 inch. Can be used with bi- blades (efficiency) and tri-blades (agilty & trust).
- Antenna mount: Solid antenna mount for less ocillations when using long antennas
- Long back bone: Enough space up to 3000mAh 6S batteries
- Gladiator shell: Protection shell from dust and water droplets (shall be removed for maximum flight time)
- GPS: A high-end GPS is used to minimize the risk of failure during proximity flights
- ESC: The drone consists iFlight's new ESCs with built-in spike absober for more reliability
- 9 mins. flight time testing with 1800mAh 6S
- 9+ testing with 3000mAh 6S Lipo or 4000mAh 6S Li-Ion
Specification:
Brand: iFlight
Model: BOB57

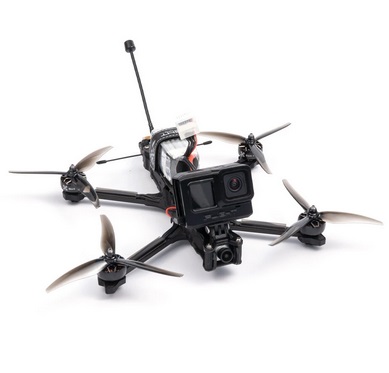

Item Name: F7 6 Inch 6S FPV Racing Drone
|
Frame Kit |
Upper(middle) plate thickness: 2.5mm Bottom plate thickness: 1.5mm Total Dimensions: 254*254mm Bottom to top distance: 22mm Geometry: H-shaped frame Top plate thickness: 2mm Arm Thickness: 6mm |
|
BLITZ F7 Flight Controller
|
MCU: STM32 F722 Gyro: BMI270 Barometer: DPS310 OSD Chip: AT7456E Flash: 32MB (Blackbox flash) UARTS: 6 Motor outputs: 4x (SH1.0 connector) I2C serial: SDA / SLA pads Smartaudio / IRC Tramp VTX protocol supported LED controller: Yes Beeper pad: Yes Firmware target: IFRC-IFLIGHT_BLITZ_F722 Mount pattern: 30.5*30.5mm / 4mm PCB hole diameter Dimensions: 36.5*35 mm Weight: 7.8g |
|
BLITZ E55 55A 4IN1 ESC
|
Model: BLITZ E55 Item Name: BLITZ E55 55A ESC - Mounting Holes: 30.5*30.5mm/Φ4mm - Weight: 15.3g - Supports 2-6S lipo input - MCU：G071 - Constant: 55 Amps - Burst: 65 Amps - Current sensor: Yes - BEC: No - Current rate: 200 - Supports: DShot DShot150/300/600/MultiShot/ OneShot etc. - Target: IFLIGHT_BLITZ_G2 |
| Ellisvanjason 2506 motors |
2506.5 1500KV 6S |
| Gemfan 6032 3-Blade propellers |
2 CW + 2 CCW ( In Green) 2 CW + 2 CCW ( In Black) |
Package Included:
1x Pre-built and Tested BOB57 FPV Drone
1x Type-C USB Cable
1x Albatross LHCP 5.8GHz SMA FPV Antenna 150mm
1x Albatross LHCP 5.8GHz SMA FPV Antenna 60mm
2x Battery Strap
