Feature

1. 【Super High 21W Power】: adopt the most stable 21W high optical power laser module at present. The latest four 6W laser coupling technology, with powerful power, can cut 12-15mm paulownia board, 8mm black acrylic board, and even 0.05mm stainless steel sheet at one time. And adopt fixed focus design, 10s fast and accurate focus.
2. 【Large Work Size】: Atomstack S20 Max have a maximum 850*400mm carving area without an extension rod. The working area meets 99% of laser engraving machine usage scenarios.
3. 【More Stable Structure】: Different from extending the Y-axis (left and right sides), Atomstack S20Max adopts a more stable and better X-axis extension scheme, S20Max can run stably in a large working range, and the engraving and cutting lines are smooth without shaking.
4. 【Tank chain constriction】: In order to make the machine more beautiful and the structure more stable, Atomstack S20Max adopts a tank chain wire constriction scheme that is not available in other models. The wire harness runs smoothly without entanglement and improves the life of the wire.
5. 【Built-in Dual Air Assist】: it is equipped with air assist as standard, and the cutting ability has been greatly improved. At the same time, the cutting accuracy and cutting quality can also be greatly optimized.
6. 【Upgrade Atomstack's self-developed 32-bit motherboard】: built-in 256-bit color scale map, which makes the engraving work more delicate and has higher contrast, so that your engraving is not only black.
7. 【New Non-Blocking Laser】: S20 Max has a built-in tool-free focusing module, and a built-in air assist system, without the interference of wires, simple and beautiful. The patented double-layer wind gathering cover design can ensure that the laser will not be blocked and the lens will not be polluted for a long time, which greatly improves the life of the laser.
8. 【Atomstack's self-developed mobile phone APP】: Atomstack's self-developed mobile phone APP has been launched in major Android application markets and Apple APPstores (you can also scan the QR code of the manual to download).
9. 【The New Filter Panoramic Glass Eye Protection Design】: the panoramic filter glass protective cover plays a very good role in protecting your eyes, filtering 97% of ultraviolet light, you and the people around you do not need to wear goggles, you can also watch Laser engraving. Reduce your goggle expense and inconvenience of wearing goggles.
10. 【Sturdy and Easy-to-Install Structure Design】: The all-aluminum anodized structure design makes the machine more durable and improves the engraving precision. The whole structure has been designed for quick installation, and the installation can be completed in generally 20-30 minutes.
11. 【Wide Compatibility】: the machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, supports Win XP / Win 7 / Win 8 / XP / Win 10, also supports MAcs system (LightBurn), engraving file format Support NC, BMP, JPG, PNG, DXF, etc.
12. 【Upgraded Compressed Spot Coupling Technology】: the ultra-fine laser focus area is reduced to 0.08*0.1mm, and the high-density laser can easily cut 25mm thick wood and 30mm thick black acrylic; it can directly engrave mirror stainless steel metal, ceramics, glass, engraving& The cutting speed is 40% higher than that of the ordinarys model, which is comparable to the effect of a 300W CO₂ laser engraving machine.
13.【 Integral Screw】: The machine uses an integral screw instead of a combined shaft coupling. The stepping motor and the screw are integral, which makes the movement of the laser more precise and the coupling more durable.
14. Laser sintering temperature up to 2400℃
15. 【Safety Protection】: Equipped with an emergency stop button, if there is an unexpected situation, the machine can be stopped at any time, and it is equipped with a reset switch and a limit switch to engrave more safely
16. 【Expandable Engraving Size】: only need to replace the Y-axis frame assembly, you can get 850*850mm super large engraving size

Specifications

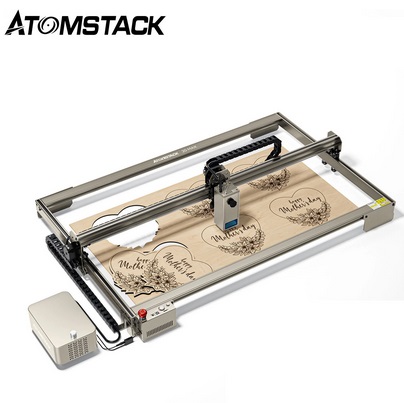

1. Product model: ATOMSTACK S20 Max

2. Engraving size: 850*400mm

3. Carving materials: wood, bamboo, cardboard, plastic, leather, PCB, aluminum oxide, non-reflective electroplated and painted metal, 304 mirror stainless steel, glass, ceramics, cotton cloth, slate;

4. Cuttable materials: cardboard, non-woven fabric, wood board, plywood, acrylic (transparency needs to be painted black), some thin plastic plates, sponge, aluminum and stainless steel and other metal sheets;

5. Machine power: 130W

6. Laser output optical power: 20-21W

7. Laser wavelength: 455±5nm

8. Engraving precision: 0.01mm

9. Focusing method: fixed focus laser, no focusing

10. Laser protective cover: there is a protective cover on the laser to protect the user's eyes, and there is no need to wear additional protective glasses. At the same time prevent pets from grabbing the laser point

11. Operating software: LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 system

12. Supported file formats NC, BMP, JPG, PNG, DXF, Etc

13. Connection method: USB/APP/Offline 14. Power supply: international common standard power input: 100-240V AC, 50/60HZ output: 12V 5A 15. Certification: CE FCC RoHS FDA PSE 16. Max Speed: 18000mm/min

S20 Max engraving machine packing list:

1×Extended X-axis assembly
1 x profile on the base
1× Base lower profile
1×laser module
2 x tank chain
1 x F30Pro dual pump air assist
1×Mounting screw
1×tool bag
4×foot pad foam
1× fixed focus film
3 x acrylic sheet
3 x wood chips
10×wire tie
1 x desiccant
1×hair brush
1×clean cloth
1×card reader
1 x TF card
1 x power adapter
1 x manual
1×data cable
1 x Y axis left profile
1 x Y axis right profile
3×foot bracket
