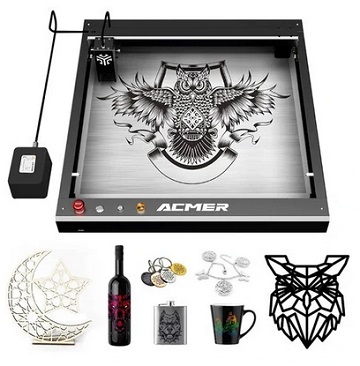

Highlights 10W Laser Power, 30000mm/min Engraving Speed ACMER P2 laser engraver has real 10W optical power, a minimum engraving accuracy of 0.01mm, and an engraving speed as high as 30000mm/min. Automatic Air-assisted System With this air-assist kit, it will significantly improve the cutting speed and cutting accuracy at the same time, improve the quality of the cut and avoid yellowing and burning of the material. Larger Engraving Area and More Engraving Materials It features a 420*400mm large engraving area and can engrave all wood, bamboo, paper, glass, plastic, leather, aluminum oxide, non-reflective plating, and lacquered metal. Sturdy Structure, Easy Installation The all-metal frame makes the machine more stable and durable and improves engraving precision. The whole engraving machine adopts a modular design and can be successfully installed in 10-15 minutes in just 4 simple steps. Multiple Security Protection It configures an emergency stop switch, power security lock, move/tip instant stop, and eye protection lenses. Wide Compatibility This machine is compatible with various mature carving software and can be controlled by APP, such as LaserGRBL (free), and LightBurn (paid), LaserGRBL supports Windows XP/7/8/10/11, LightBurn supports Macs OSs and Windows, carving file formats support NC, BMP, JPG, PNG, DXF, etc.

Specification General Brand: ACMER Model: P2 10W Color: Grey Specification Laser power: 10W Machine power: 130w Engraving accuracy: 0.01mm Compressed spot: 0.05*0.06mm Engraving speed: 30000mm/min Engraving size: 420*400mm Repeated positioning accuracy: 0.001mm Input voltage: AC 100-240V, 50/60Hz Support systems: Macs, Windows, Linux Connectivity: USB connection / ACMER App Output voltage: DC 24V 5A Support software: LaserGRBL, LightBurn (paid purchase) Input format: NC, BMP, JPG, PNG, DXF, etc. Laser protective cover: Filter glass eye protection Focusing mode: Fixed focusing laser, no need to adjust Carving Material: All wood, bamboo, paper, glass, plastic, leather, aluminum oxide, non-reflective plating, and lacquered metal Cutting Material: Cardboard, non-woven fabric, light wood, acrylic material, thin plastic sheet, stainless steel sheet Cutting Thickness: Cut 10mm plywood at one time, can cut 30mm acrylic board many times, cut 0.1mm stainless steel board Weight & Size Product Weight: 6.5kg Package Weight: 8kg Product Size(L x W x H): 613*590*200mm Package Size(L x W x H): 710*305*245mm

Package Contents

1 x Front Component 1 x Rear Component 1 x Left Component 1 x Right Component 1 x X-axis Assembly 1 x Laser Module 1 x Air Pump 1 x Power Adapter 2 x Belts 1 x Machine Key 1 x Laser Goggle 1 x Card Reader+TF Card 1 x USB Cable 1 x Pipe Connector 1 x Air Pipe 1 x Circuit Group 2 x Test Plank 1 x Wrench 12 x M3*6 Screw 4 x M4*8 Screw 4 x Screwdriver 1 x Brushes 1 x User Manual
