Introduction:

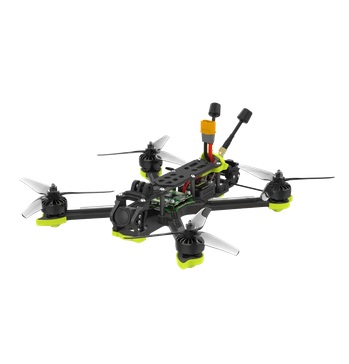

This Nazgul5 V3 HD is a 5 inch quadcopter that comes with the DJI O3 Air Unit Digital HD System,
and Nazgul 5" 3-Blade propellers. The Nazgul5 V3 HD has been pre-tuned and set up with everything you need, all you
need to do is bind-and-fly! Loaded with lots of power; it comes with the XING-E 2207 6S motors, BLITZ F7 Flight
Controller, and the BLITZ E45S 2-6S 45A BLHeli32 4-in-1 ESC, which make this quad a must-have!
Hightlights:
XING-E 2207 motors and NAZGUL 5140 props
5 inch version also fits 5.1 inch style propellers
Fits both 30.5x30.5 and 20x20 stacks
DJI O3 Air Unit Digitl HD System
5mm arm design for more durability
Popular True-X configuration
LED illuminated Logo
TPU crash-guards
Easy-Swap arms
Specification:
Model：Nazgul5 V3 6S HD
FC: BLITZ F722
ESC: BLITZ E45S 45A 4-IN-1 ESC
Video Transmission: DJI O3 Air Unit
Frame: 255mm wheelbase
Motor: XING-E Pro 2207 motors
Prop: Nazgul 5 inch propellers
Takeoff Weight: Approx. 620 g
Dimensions (L×W×H): 180×180×80 mm
Diagonal Distance: 245mm
Maximum Speed: 130 Km/h (Manual Mode)
Maximum Takeoff Altitude: 5000 m
Maximum Hover Time: Approx. 8 mins
Maximum Flight Distance: 5 km
Maximum Wind Speed Resistance: 130 Km/H (Level 4)
Operating Temperature Range：-10° to 40° C (14° to 104° F)
Antennas: 2 Antenna
GNSS：N/A
| Video Transmission |
Product Name: DJI O3 Air Unit Weight: Approx. 290 grams（headband included） Dimensions (L×W×H): L167 * W1039 * H 813mm Screen Size (single screen): 0.49-inch Resolution (single screen): 1920×1080 Refresh Rate: Up to 100 Hz Interpupillary Distance Range: 56-72 mm Diopter Adjustment Range: -8.0 D to +2.0 D FOV (single screen): 51° Communication Frequency: 2.400-2.4835 GHz；5.725-5.850 GHz Transmission Power (EIRP): 2.4 GHz: < 30 dBm (FCC), < 20 dBm (CE/SRRC/KC) 5.8 GHz [4]: < 30 dBm (FCC), < 23 dBm (SRRC), < 14 dBm (CE/KC) Max Video Transmission Bitrate : 50 Mbps Operating Temperature Range: 0° to 40° C (32° to 104° F) Power Input: 7-9 V (1.5 A) |
Package Included:
1 x Nazgul5 V3 6S HD Drone
2 x Antennas
2 x Battery pads
2 x Prop(Pairs)
