Specifications

Display
Projection System
DLP Single 0.7″ XGA
DMD type
DC3 DMD Chip
Resolution‎
1024×768 pixels
Brightness
6,000 ANSI Lumens
Contrast Ratio*
10,000:1
Display Color‎
30 Bits (1,037,000,000 colors)
Aspect Ratio
Native 4:3 (5 aspect ratio selectable)
Light Source
Lamp
Light Source Life‎*
3000/5000/6000 hours(Normal/Eco/SmartEco mode)

Optical
Throw Ratio
1.44~2.16
Zoom Ratio
1.5X
Lens Control
Fixed lens
Lens Shift
Vertical 11%
Keystone Correction
2D, Horiztonal / Vertical ± 30 degrees
Projection Offset
100.0%
Projection Size
30″~300″

Audio
Built-in Speaker
5W x 1
Security
Security Lock Security Bar
Feature 2D Keystone, HDMI/VGA Signal Power ON, LAN Control, Panel Key Lock, HDMI2.0
(4K compability)

Compatibility
Resolution Support
VGA(640 x 480) to WUXGA_RB(1920 x 1200)
Horizontal Frequency
15K ~ 102KHz
Vertical Scan Rate
23 ~ 120Hz
HDTV Compatibility
480i, 480p, 576i, 567p, 720p, 1080i, 1080p
Video Compatibility
NTSC, PAL, SECAM‎

Power
Power Comsumption(Max/Normal/Eco)
440W/420W/330W
Standby Power Comsumption
Normal < 0.5W. Network < 2W.
Power Supply AC 100 to 240 V, 50/60 Hz

Dimension and Weight
Product Dimensions (WxHxD)
359.8 x 120.8 x 259.0mm
Product Weight 3.7 Kg
Operation Condition
Noise Level(Normal/Eco) 39/36 dB
Operating Temperature 0o ~ 40o C

Accessories
Accessories (Standard)
Power Cord (1.8M)
Remote control
AAA Batteryx2
User Manual CD
Quick Start Guide (18L)
Warranty Card

Accessories (Optional)
Carry Bag
Spare Lamp Kit
Wireless Dongle
(QCast/WDC10)
RS232 Cable
3D Glasses

Connectivity
I/O Port
USB Type-A x1
USB Type-B x1
HDMI 1 x1
HDMI 2 x1
Monitor out (D-sub 15pin) x1
Computor in (D-sub 15pin) x1
LAN x1
3D Sync Out x1
DC 12V Trigger (3.5mm Jack) x1
Audio out (mini jack) x1
Audio in (Mini Jack) x1
Speaker 5W x1
RS-232 x1
Audio L/R in (RCA) x1
Composite Video in (RCA) x1

OSD
On Screen Display Language
Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 Languages)

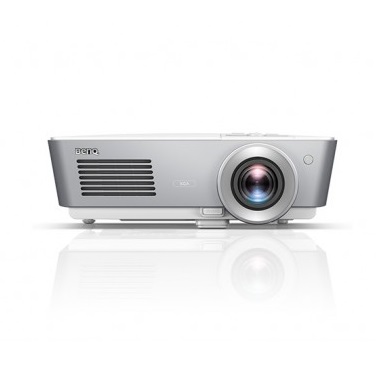

BenQ’s SX765 is purpose-built to deliver crisp, high-brightness projection and maximum system flexibility to minimize renovation costs. Equipped with comprehensive features to assist installation, SX765 is designed for efficient projector mounting and optimization with minimal labor time and resources.
