BlueCore Laser Projectors from the World’s No.1 DLP Brand

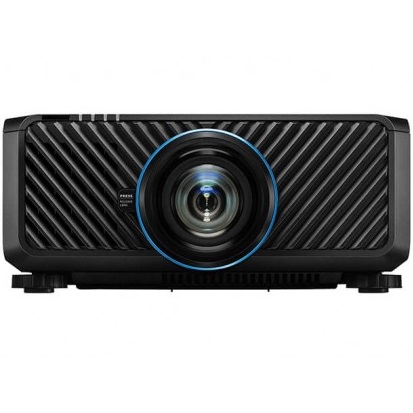

The BenQ LU9715BlueCore Laser Projector is the brightest choice for large venue applications, featuring superior, 8000 ANSI-lumen brightness and 3,000,000:1 contrast ratio for brilliant viewing experiences even under bright ambient lighting. The BlueCore laser engine also delivers superior color performance through a dual color wheel system, support for 360° and portrait installation and 24/7 operation with dramatically improved durability for diverse application opportunities. The LU9715 is compatible with a selection of lenses for a wide range of installation possibilities, captivating audiences at museums, entertainment venues and large corporate spaces.

Specification

Display
Projection System‎ DLP Single 0.67″ WUXGA
DMD type DC3 DMD Chip
Resolution‎ 1920×1200 pixels
Brightness 8000 ANSI Lumens
Contrast Ratio‎* 3,000,000:1
Display Color‎ 1.07 Billion Colors
Aspect Ratio Native 16:10 (9 aspect ratio selectable)
(5:4/4:3/16:10/16:9/1.88/2.35/Theaterscope/Source (Auto)/Unscaled (Real))
Light Source Laser diodes
Light Source Life‎* 20000/45000/85000 hours (Normal/Eco/Custom by 50% mode)

Optical
Throw Ratio LS1ST4 Ultra Short Throw: 0.377
LS1ST3 Wide Fix: 0.76
LS1ST2 Ultra Wide: 0.75 ~ 0.93
LS1ST1 Wide Zoom: 1.25 ~ 1.79
LS1SD Standard: 1.73 ~ 2.27
LS1LT1 Semi Long: 2.22 ~ 3.67
LS1LT2 Long Zoom1: 3.58 ~ 5.38
LS1LT3 Long Zoom2: 5.31 ~ 8.26
Zoom Ratio LS1ST4 Ultra Short Throw: Fixed
LS1ST3 Wide Fix: Fixed
LS1ST2 Ultra Wide: 1.25X
LS1ST1 Wide Zoom: 1.41X
LS1SD Standard: 1.3X
LS1LT1 Semi Long: 1.65X
LS1LT2 Long Zoom1: 1.5X
LS1LT3 Long Zoom2: 1.55X
Lens Control 8 Lens (Motorized Zoom and Focus)
Lens Shift Vertical: 0 ~ 50%
Horizontal: -10%~ 10%, Standard Lens
Keystone Correction Vertical: ± 30 degrees‎ ,
Horizontal: ± 30 degrees‎
Projection Size 80″ ~ 500″ , Standard Lens

Security
Security Lock Security Bar, Power Cord Lock

Connectivity
I/O Port HDMI 1 x1
DisplayPort x1
DVI-D In x1
Computer In-1 (D-sub 15pin, Female) x1
Computer In-2 (5BNC,YBPBR) x1
Monitor out (D-sub 15pin,Female) x1
3G-SDI In x1
3G-SDI Out x1
HDBaseT (RJ45 for Video Display and Network control) x1
RS232 In (D-sub 9pin, male) x 1
3D Sync out x1
Wired Remote In x1
IR Receiver (Front+Rear) x2
12V Trigger x1

Compatibility
Resolution Support VGA (640 x 480) to WUXGA (1920 x 1200)
Horizontal Frequency 15K – 92kHz
Vertical Scan Rate 23 – 85Hz
HDTV Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

Power
Power Consumption (Max/Normal/Eco) Normal 850Watts. Eco 675Watts.
Standby Power Consumption Normal < 0.5Watts. Network < 6W.
Power Supply 100 ~ 240V AC

Dimension and Weight
Product Dimensions (WxHxD) 500 X 211 X 583 mm
Product Weight 28kg (without lens)
Operation Condition
Noise Level (Normal/Eco) 40/37 dBA
Operating Temperature 0 ~ 40o C

Accessories
Accessories (Standard) Power Cord
Remote control
AAA Batteryx2
VGA cable (1.8m)
Installation Guide
User Manual CD
Accessories (Optional) LS1ST4 Ultra Short Throw (5J.JCY37.001)
LS1ST3 Wide Fix (5J.JAM37.011)
LS1ST2 Ultra Wide (5J.JAM37.061)
LS1ST1 Wide Zoom (5J.JAM37.021)
LS1SD Standard (5J.JAM37.001)
LS1LT1 Semi Long (5J.JAM37.051)
LS1LT2 Long Zoom1 (5J.JAM37.031)
LS1LT3 Long Zoom2 (5J.JAM37.041)

OSD
On Screen Display Language English/ French/ German/Italian/ Japanese/ Korean/ Portuguese/ Russian/ Simplified Chinese/ Spanish/ Swedish/ Traditional Chinese (12 Languages)‎

Environmental Notice
LightSource life results will vary depending on environmental conditions and usage.
Actual product’s features and specifications are subject to change without notice.
