Specification:
| Item Model Number |

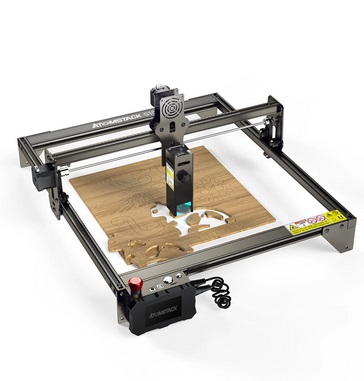

ATOMSTACK S10 PRO |
| Print Size |
Recommend Print Size 410*400mm |
| Carving Objects |
Wood, Bamboo, Cardboard, Plastic, Leather, PCB Board, Aluminum Oxide, Non-reflective, Electroplating Layer and Paint Surface Layer Metal, 304 Mirror Stainless Steel, Glass, Ceramics, Cotton Cloth, Slate; |
| Cutting Objects |
Cardboard, Non-woven Fabric, Wood Board, Acrylic, Some Thin Plastic Board, Sponge; |
| Electric Power |
50W |
| Laser Output Power |
10-11W |
| Wave Length |
445 ± 5nm |
| Engraving Accuracy |
0.01mm |
| Focusing Method |
Fixed Focus Laser, No Need to Focus |
| Laser Protective Cover |
Protect the user's eyes and prevent pets from grabbing the laser spot. |
| Operating Software |
LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 system. |
| Input Format |
NC, BMP, JPG, PNG, DXF, etc. |
| Data Transmission Method |
USB Connection |
| Input Voltage |
AC100-240V, 50/60Hz |
| Output Voltage |
DC12V, 5A |
| Certification |
CE FCC RoHS FDA PSE |
Package Included:
| 1x |
X-axis assembly |
| 2× |
Section 57CM |
| 2× |
Section 48CM |
| 1x |
Control Box |
| 3x |
Support Legs |
| 1x | Laser |
| 1× |
24V2A Power Adapter |
| 1× |
Power Switch Line |
| 1× |
USB Cable |
| Step 1~5 Installation Package: |
|
| 1× |
M5 Wrench |
| 10x | Rolled Belt |
| 3x | Small Wood |
| 1× |
Focal Length Film |
| 1× |
M3 Wrench |
| 1× |
Marker |
| 1x | Brush |
| 3x | Small Acrylic |
| 1x | Stainless Steel Backing Plate for Cutting |
More Details:
