Description:

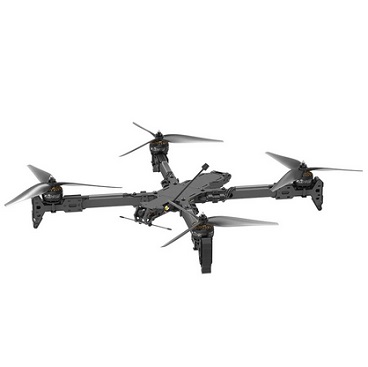

It's proud to announce the release of the X413 analog BNF, X413 8S Analog is a 13" BNF quadcopter that comes with the BLITZ Whoop VTX Video Transmission System, and HQ 13" 3-Blade propellers. The X413 has been pre-tuned and set up with everything you need, all you need to do is bind-and-fly! Loaded with lots of power; it comes with the XING 4214 motors, BLITZ F7 Pro Flight Controller, and the BLITZ E80 Pro 4-IN-1 ESC, which make this quad a must-have!
Specifications:
Brand: iFlight
Model: X413
Product Name: 13 Inch 8S Long Range RC FPV Racing Drone
FC: BLITZ F7 Pro Flight Controller
ESC: BLITZ E80 4-IN-1 Pro ESC
Video Transmission: BLITZ Whoop 1.2G 1.6W VTX/ 5.8G 2.5W VTX
Frame: 599mm wheelbase
Motor: XING 4214 motors
Prop: 13X9X3 propellers
Weight: 2070g (Without Battery)
Dimensions (L×W×H)：425x425x26mm
Max Speed: 140km/h
Maximum Takeoff Altitude: 6000 m
Max Hover Time: Approx. 18 mins (with 8S 5600mAh no load)
7mins (With 8S 5600mAh 4KG load)
5mins (With 8S 5600mAh 6KG load)
Max Wind Speed Resistance: 8 ( Level )
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: Single Antenna
GNSS: GPS+SBAS+Galileo+QZSS+Glonass
Video Transmission:
| Optional Version | |
| 1.6W VTX | Product Name: BLITZ Whoop 1.2G 1.6W VTX Output Power: 0-25-400-800-1600mw Input Volts: 7-34V Working Current: ≤25mw@12V 410mA, ≤400mw@12V 470mA, ≤800mw@12V 490mA, ≤1600mw@12V 590mA Transmission fre: 8CH(1080-1360MHz) Antenna Interface: MMCX Mounting Hole: 25*25/φ1.6mm Weight: 32g Dimensions: 50*30*16mm |
| 2.5W VTX | Product Name: BLITZ Whoop 5.8G 2.5W VTX Output Power: 0-25-400-1000-2500mw Input Volts: 7-34V Working Current: ≤pit @12V 140mA, ≤25mw@12V 200mA, ≤400mw@12V 340mA, ≤1000mw@12V 480mA, ≤2500mw@12V 780mA Transmission fre: 40CH(A-B-E-F-R) Antenna Interface: MMCX Mounting Hole: 25*25/φ1.6mm Weight: 32g Dimensions: 50*30*16mm |
Packing List:
1 x X413 8S Analog BNF
1 x Battery pad
1 x Antennas
2 x Propellers(Pair)
3 x Battery straps
1 x Screw Bag
