OVERVIEW:

The FrSky Tandem X20 Series is a dual-band telemetry radio system, its development has drawn on valuable feedback from FrSky’s extensive customer base, experience with previous radios and introduces many new features such as a colors touch screen display, underpinned by an ergonomic design that provides unprecedented comfort when held. On the RF side, FrSky has introduced a powerful and reliable TD dual-band RF system, which features the advantages of the FrSky 900MHz and 2.4GHz in one combined RF system. The TD dual-band RF system is characterized by true simultaneous dual-band remote control with telemetry, and superb end-to-end 4ms latency performance. When combined with ETHOS, a completely new operating system, FrSky’s Tandem X20 Series provides users with a powerful, intuitive, and flexible experience to enjoy across the entire world of RC.

A Very Well Thought Through Radio Design

Tandem X20 Series design has focused highly on technology, ergonomics, and user experience as follows:

- Hardware Design

The overall weight of Tandem X20 Series has been kept low, less than 1000 grams, by incorporating the use of light-weight materials while maintaining a strong and robust quality. The radio system comes with an 800 x 480-pixel colors touch screen display on the top area of the radio which is easy to read indoors and in direct sunlight outdoors.

The Tandem X20 Series has been complemented with 6 customizable buttons on the front case that allows for quick switching between features, ideal to be used for flight modes. Additional 2 rear momentary buttons have been introduced to provide flexibility, in the ideal position for DLG pilots launch fingers no matter if you are left or right-handed.  All the trims and pots adopt the CNC metal hardware that makes the radio more endurable.

- Ergonomics

The two side handle grips of Tandem X20 Series are made with a high-quality comfortable material, designed ergonomically to fit the hand very well. Both hall-gimbals are well-positioned which makes the sticks very close to the grip edge allowing for ease to reach and control, also the spring tension and the stick travel (45°to 60°) can be adjusted.

- Internal 900MHz/2.4GHz Dual-Band & External Module Bay

In addition, the Tandem X20 Series includes a rear Lite version module bay to offer more options to connect external devices.  The external Lite module bay supports R9M Lite, R9M PRO Lite, XJT Lite, etc.  FrSky welcomes working compatibility with the 3rd party products with their own developed technology following FrSky verified 3rd party compatibility-testing program.

- ETHOS Operating System

ETHOS, as a thoroughly new operating system, designed from the ground up by RC experts, grants users a powerful, intuitive, and flexible experience that can maximize the fun of RC Hobby!

Specifications:

Brand Name: FrSky

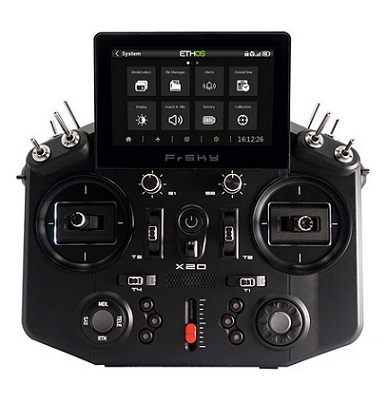

Item Name: X20 Transmitter

Model: X20

Dimension: 212*200*95 mm (L*W*H)

Weight: 809g (without battery)

Mode: Mode 2 (Left Hand Throttle)

Color: Blue/Black

Version: Non-LBT(FCC 915MHz)/LBT Version(EU 868MHz)

Please notice, antenna is different for FCC and EU.

Operating system: ETHOS

Internal RF module: TANDEM

Number of Channels: 16/32 channels

Operating Voltage Range: 6.5 ~ 8.4V (2S Li-battery)

Operating Temperature: -10°C~60°C(14°F~140°F)

Operating Current: 240mA@7.4V (typ.)

Charging Current: ≤1A ±200mA

USB Adaptor Voltage: 5V+0.2V

USB Adaptor Current: >2.0A

Backlit touchable LCD resolution: 800*480

Compatibility: ACCST D16 & ACCESS & TD receivers

Model: X20 Transmitter

Features:

Built-in TD 900M/2.4G Dual-Band Internal RF Module Supports Multiple Working Modes

- 2.4G ACCST D16 Mode (Compatible with ACCST Receivers with D16 V2 or later FW)

- 2.4G ACCESS Mode (Compatible with ACCESS Receivers)

- 900M ACCESS Mode (Compatible with ACCESS R9 868/915MHz Receivers)

(*Capable of simultaneous working under ACCESS mode)

- 2.4G & 900M TD Mode (Compatible with TD Receivers)

Supers-low latency and long-range control with telemetry

(*Up to 50 to 100KM range and down to 4ms end-to-end latency)

800*480 Colors Touch-Screen Displays

6 Quick-Mode Custom Buttons (Front) and 2 Momentary Buttons (Rear)

Lite Type External Module Bay

Built-in 6-axis Gyroscope Sensor

All CNC Metal Trims, Knobs

Haptic Vibration Alerts and Voice Speech Outputs

Supports SWR Indicator Warning

Supports Recharge System for 2S Li-ion Battery (USB Type-C Interface)

High-speed PARA Wireless Training System (Compatible with FreeLink App3.0)

High-Precision Hall-Sensor Gimbals with All-CNC Metal Panel

ETHOS: The more powerful, Flexible and Intuitive OS for your radio.

- Clear and Intuitive UI Design

- Supports Dual Operation Modes of Radio Display (Touch and Non-Touch)

- Supports Multi-Language Switching

- Hardware/Software Version and Factory Version Detection

- Supports running LUA Scripts

X20 Version Compared:

	X20 Stand	X20S	X20 HD
Built-in TD 900M/2.4G Dual-Band Internal RF Module Supports Multiple Working Modes - 2.4GACCST D16 Mode(Compatible with ACCST Receivers with D16 V2 or later FW) - 2.4G ACCESS Mode(Compatible with ACCESS Receivers) - 900M ACCESS Mode(Compatible with ACCESS R9 868/915MHz Receivers) *Capable of simultaneous working under ACCESS mode - 2.4G&900M TD Mode(Compatible with TD Receivers) Super-lows Iatency and long-range control with telemetry *Up to 50 to 100KM Range and down to 3ms end-to end latency	√	√	√
800*480 Colors Touch-Screen Displays	√	√	√
6 Quick-Mode Custom Buttons (Front) and 2 Momentary Buttons(Rear)	√	√	√
Lite Type External Module Bay	√	√	√
Built-in 6-axis Gyroscope Sensor	√	√	√
CNC Metal Trims,Knobs	√	√	√
Haptic Vibration Alerts and Voice Speech Outputs	√	√	√
Supports Recharge System for 2S Li-ion Battery (USB Type-C Interface)	√	√	√
High-speed PARA Wireless Training System (Compatible with FreeLink App 3.0)	√	√	√
Built-in Audio Wireless Module (Compatible with Bluetooth Audio Device)	√	√	√
High-Precision Hall-Sensor Gimbals with CNC Metal Panel	√
All CNC High-Precision Hall-Sensor Gimbals with 10 Ball-Bearing, adjustable 45° to 60° stick travel and 8° ratatable panel		√	√
Built-in≈0ms Latency HD Digital Video Transmission System (720p 60fps) - The transmitted video can be displayed on the radio screen, or the connected external device(FPV goggle and Monitor,etc.)via HDMI Output.			√
ETHOS:The more powerful,Flexiable and Intuitive OS for your radio. - Clear and Intuitive UI Design - Supports Dual Operation Modes of Radio Display (Touch and Non-Touch) - Supports Multi-Language Switching - Hardware/Software Version and Factory Version Detection - Supports running LUA Scripts	√	√	√

Package Included:

1 x X20 Transmitter

1 x Hand Grips

1 x Built-in 7.4V 4000mAh Battery
