Get ready for true 4K HDR with cinematic wonder like you’re in an authentic digital cinema. For audio-video enthusiasts who want to take in every little detail for truly cinematic experiences, enjoy the super-wide color space up to 100% DCI-P3 with film-like texture and playback as directors envisioned.

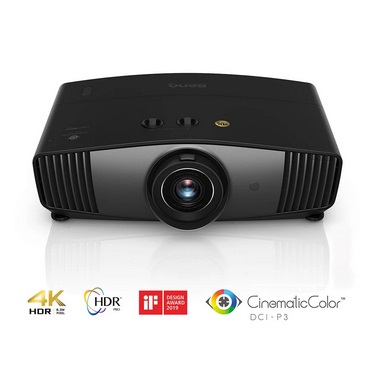

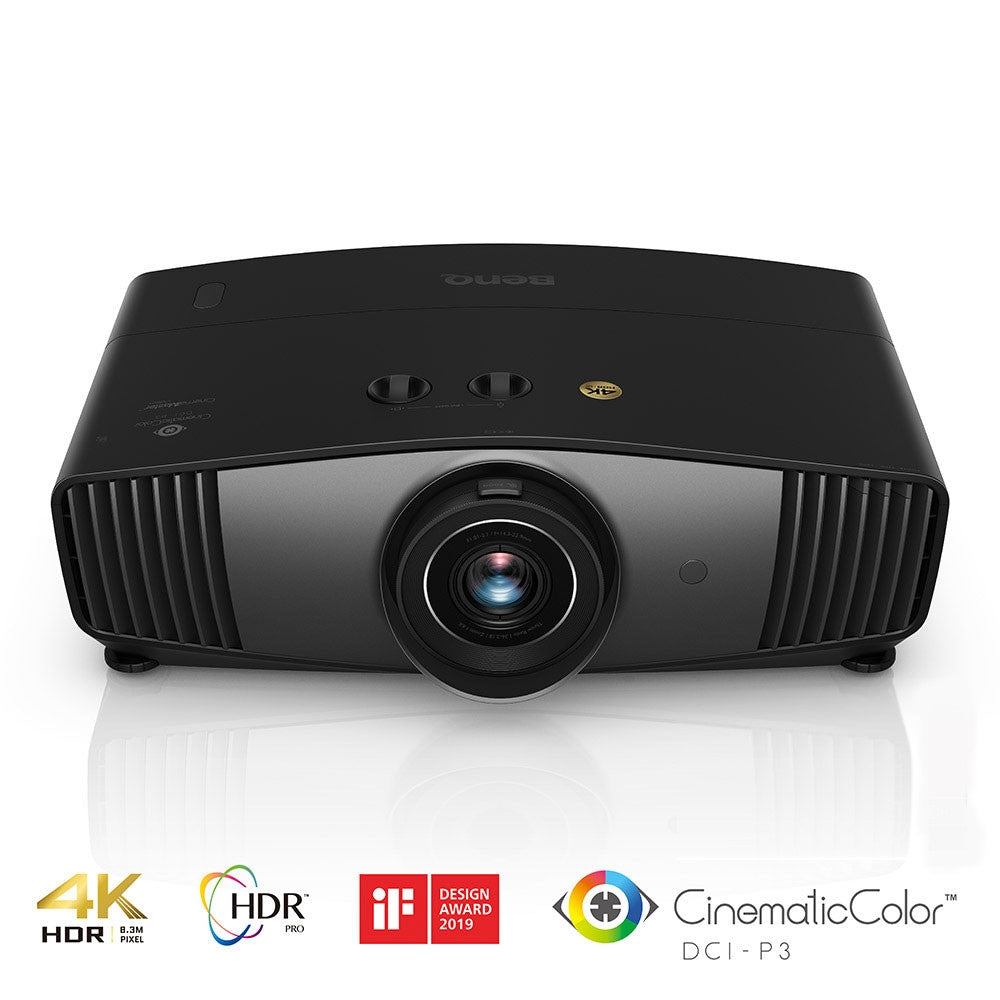

BenQ W5700 4K HDR CinePrime Projector with CinematicColor™ technology ushers awe-inspiring movie magic into your tailored AV room.
Key Features:
True 4K UHD resolution with 8.3M pixels
BenQ CinematicColor™ for cinema industry’s 100% DCI-P3/Rec.709 color space
HDR-PRO™ projector-optimized HDR technology (HDR10/HLG support)
100% DCI P3 coverage for truly cinematic colour
BenQ’s CinematicColor reproduces 100% of the American film industries’ DCI-P3 standard. This super-wide colour reproduction means you see every colour, exactly as the director intended. From dazzling sunsets to the subtlest flesh tones, the W5700 is totally true to the natural colour.
HDR-PRO – getting the best from HDR content
Taking HDR to the next level, HDR-PRO provides enhanced tone mapping for even greater contrast. Bringing out the finest details, HDR-PRO brings images to life. Compatible with HDR10 and HLG formats, the W5700 gets the best from your movies, games and TV.
4K UHD Resolution
Ultra HD 4K resolution gives you four times more detail than Full HD with over 8 million pixels! It delivers a sharper, more life-like picture with richer and more natural colour. It also lets you sit closer to the screen – making it ideal for smaller rooms, too.
Factory calibrated for out-of-the box colour accuracy
Making sure you get the best from your projector, straight out of the box, the W5700 comes with a factory calibration set-up and report. Using specialist instruments and software, the projector is calibrated and adjusted for precise D65 colour temperature, gamma, black level, white level, neutral grey, RGBCMY colour tracking, hue, saturation, brightness and output. This means a brilliant picture is guaranteed – straight out of the box.
ISF ccc calibration for fine-tuned perfection
Suitable for professional installation, the W5700 comes with ISF ccc calibration built-in. The ISF (Imaging Science Foundation) ccc facility lets you or your installer customise the image and colour performance for all room conditions. Preset light modes can also be set for night and daytime viewing.
Ultra-high precision lens for the sharpest picture
For the sharpest imaging, BenQ have fitted the W5700 with a top quality lens. The 11-element array is structured into six groups with a metal barrel and cell framework. This makes the most of UHD 4K resolution in delivering sabre-sharp precision and detail, right across the screen.
Optimal installation with two-way lens shift
Featuring lens shift that’s adjustable in both vertical and horizontal planes, the W5700 is suitable for all spaces. This adjustment makes installation much easier as, once installed, you’re able to adjust the image to precisely fit your screen – without the need for any image-compromising digital adjustment.
Professional finish
Every detail of the W5700’s design and finish has been carefully considered. The dustproof, matte black casing prevents light leakage, as well as looking unobtrusive. Other neat touches include a lens hood and vertical louver air intakes – both resist the negative effect of dust.
Wide-ranging inputs, including 4 x USB
The quad USB interface lets you not just power devices but also playback from two media devices. With media device playback, you can choose between USB 2.0 and 3.0 sockets. Utilising a USB 3.0 port, data is transferred around ten times faster than USB 2.0 – making streamer Hi-Res music and video a smooth and glitch-free process.
Super-size your movie night experience, with the BenQ W5700.
Specifications
Projector | |
---|---|
Number of colours | 1.073 billion colours |
Projector native resolution | 2160p (3840x2160) |
Native aspect ratio | 16:9 |
Supported aspect ratios | 16:9 |
Screen size compatibility | 1524 - 7620 mm (60 - 300") |
Projection distance | 1.75 - 9.32 m |
Contrast ratio (dynamic) | 100000:1 |
Zoom ratio | 1.6:1 |
Zoom capability | Yes |
Vertical scan range | 23 - 120 Hz |
Horizontal scan range | 15 - 102 kHz |
Keystone correction, vertical | -40 - 40° |
Projection technology | DLP |
Projector brightness | 1800 ANSI lumens |
Lamps | |
Lamp power | 245 W |
Light source type | Lamp |
Service life of light source | 4000 h |
Service life of light source (economic mode) | 10000 h |
Light source | |
Lamp power | 245 W |
Light source type | Lamp |
Service life of light source | 4000 h |
Service life of light source (economic mode) | 10000 h |
Lens system | |
Zoom ratio | 1.6:1 |
Zoom capability | Yes |
Focus | Manual |
Focal length range | 14.3 - 22.9 mm |
Aperture range (F-F) | 1.81 - 2.1 |
Horizontal lens shift range | -23 - 23% |
Vertical lens shift range | -60 - 60% |
Throw ratio | 1.36 - 2.18 |
Scanning frequency | |
Vertical scan range | 23 - 120 Hz |
Horizontal scan range | 15 - 102 kHz |
Video | |
Full HD | Yes |
Supported video modes | 480i,480p,576i,576p,720p,1080p,2160p |
Supported graphics resolutions | 640 x 480 (VGA),720 x 400,800 x 600 (SVGA),832 x 624,1024 x 576 (WSVGA),1024 x 768 (XGA),1152 x 864 (XGA+),1152 x 870,1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 768 (WXGA),1280 x 800 (WXGA),1280 x 960,1360 x 768 (WXGA),1400 x 1050 (SXGA+),1440 x 900 (WXGA+),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),3840 x 2160 |
Audio | |
Built-in speaker(s) | No |
Ports & interfaces | |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
Mobile High-Definition Link (MHL) | No |
HDMI connector type | Full-size |
DC-in jack | Yes |
HDMI version | 2.0b |
HDMI ports quantity | 2 |
Ethernet LAN (RJ-45) ports | 1 |
USB 2.0 ports quantity | 2 |
Serial interface type | RS-232 |
PC Audio out | Yes |
DVI port | No |
AC (power) in | Yes |
Mini-USB 2.0 ports quantity | 1 |
Network | |
Smart TV | No |
Ethernet LAN | Yes |
Wi-Fi | No |
Ethernet LAN (RJ-45) ports | 1 |
Storage | |
Card reader integrated | No |
Sound emission | |
Noise level | 32 dB |
Noise level (economic mode) | 26 dB |
Technical details | |
DC-in jack | Yes |
Product colour | Black |
HDCP | Yes |
On Screen Display (OSD) | Yes |
On Screen Display (OSD) languages | Arabic, Bulgarian, Simplified Chinese, Traditional Chinese, Croatian, Czech, Danish, German, English, Spanish, Finnish, French, Greek, Hindi, Hungarian, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Swedish, Thai, Turkish |
Lamp power | 245 W |
Performance | |
Market positioning | Home cinema |
HDCP | Yes |
On Screen Display (OSD) | Yes |
On Screen Display (OSD) languages | Arabic, Bulgarian, Simplified Chinese, Traditional Chinese, Croatian, Czech, Danish, German, English, Spanish, Finnish, French, Greek, Hindi, Hungarian, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Swedish, Thai, Turkish |
Vertical scan range | 23 - 120 Hz |
Horizontal scan range | 15 - 102 kHz |
Noise level | 32 dB |
Noise level (economic mode) | 26 dB |
Number of OSD languages | 28 |
Features | |
HDCP | Yes |
On Screen Display (OSD) | Yes |
On Screen Display (OSD) languages | Arabic, Bulgarian, Simplified Chinese, Traditional Chinese, Croatian, Czech, Danish, German, English, Spanish, Finnish, French, Greek, Hindi, Hungarian, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Swedish, Thai, Turkish |
Noise level | 32 dB |
Noise level (economic mode) | 26 dB |
Number of OSD languages | 28 |
Multimedia | |
Built-in speaker(s) | No |
Design | |
Market positioning | Home cinema |
Product type | Standard throw projector |
Product colour | Black |
Display | |
Built-in display | No |
Power | |
AC input voltage | 100 - 240 V |
Power consumption (max) | 405 W |
Power source | AC |
Power consumption (typical) | 330 W |
Power consumption (standby) | 0.5 W |
Power consumption (economy mode) | 247 W |
Operational conditions | |
Operating relative humidity (H-H) | 10 - 90% |
Storage temperature (T-T) | -20 - 60 °C |
Storage relative humidity (H-H) | 10 - 90% |
Operating temperature (T-T) | 0 - 40 °C |
Operating altitude | 0 - 1499 m |
Weight & dimensions | |
Weight | 6.5 kg |
Width | 492 mm |
Depth | 349 mm |
Height | 168 mm |
Packaging content | |
Remote control included | Yes |
Manual | Yes |
Cables included | AC |
Other features | |
Power consumption (economy mode) | 247 W |
