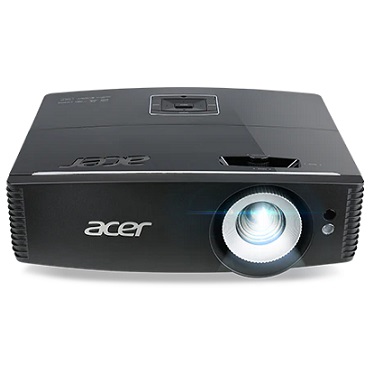

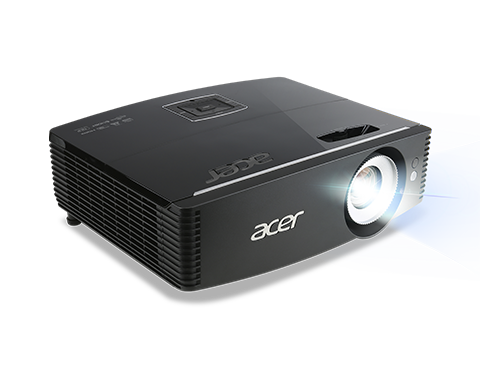

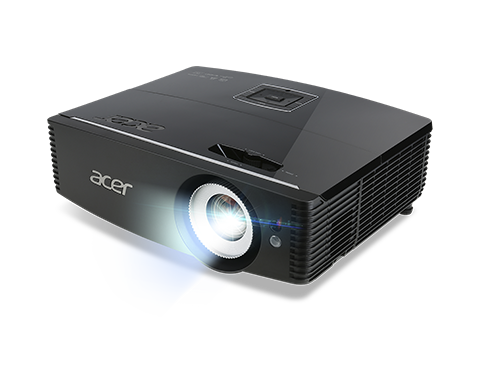

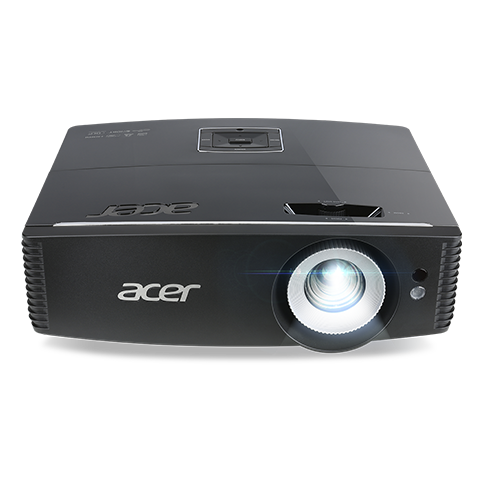

The Acer P6505 offers a premium Full HD resolution projection solution for small and large conference rooms, delivering amazing picture quality with a brightness of 5,500 lumens.
Enjoy crystal-clear, vivid images from afar in lecture halls, auditoriums, or any large venue with up to 5,500 lumens of brightness.
The 254 cm (100-inch) 1080p Full HD image is so real you might think you're looking out of a window.
Enjoy natural colors and exceptionally bright images - thanks to Acer ColorBoost3D™ technology.
Enjoy smooth, natural colours with ColorSafe II technology, which controls dynamic RGB values to prevent colour loss.
Use your projector in any environment without sacrificing the richness of detail: Acer LumiSense+™ adjusts the brightness and colour saturation for you depending on the content and the ambient light.
Control, manage and monitor your device from anywhere with an Internet connection using Crestron ® control systems.
DLP 3D Ready allows users with DLP 3D glasses to play live sequential (progressive) content at 120Hz from a PC with an appropriate 120Hz graphics card and stereoscopic 3D player, or a Blu-ray Disc from a Blu-ray show players.
Keystone correction will make it easier for you to find the right angle for your presentation as it corrects horizontal and vertical distortions.
Fix distortions in every corner quickly and easily - thanks to 4-corner correction.
| Projector | |
|---|---|
| Projector native resolution | 1080p (1920x1080) |
| Native aspect ratio | 16:9 |
| Supported aspect ratios | 4:3 |
| Screen size compatibility | 508 - 7620 mm (20 - 300") |
| Projection distance | 1 - 9.4 m |
| Contrast ratio (typical) | 20:1 |
| Contrast ratio (dynamic) | 20:1 |
| Zoom ratio | 2.0:1 |
| Vertical scan range | 24 - 120 Hz |
| Horizontal scan range | 15 - 100 kHz |
| Keystone correction, vertical | -30 - 30° |
| Keystone correction, horizontal | -30 - 30° |
| Projection technology | DLP |
| Projector brightness | 5500 ANSI lumens |
| Lamps | |
| Lamps quantity | 1 lamp(s) |
| Lamp power | 365 W |
| Light source type | Lamp |
| Light source | |
| Lamps quantity | 1 lamp(s) |
| Lamp power | 365 W |
| Light source type | Lamp |
| Lens system | |
| Zoom ratio | 2.0:1 |
| Focal length range | 20.91 - 32.63 mm |
| Aperture range (F-F) | 2.5 - 3.6 |
| Offset | 66% |
| Scanning frequency | |
| Vertical scan range | 24 - 120 Hz |
| Horizontal scan range | 15 - 100 kHz |
| Video | |
| Analog signal format system | NTSC,PAL,SECAM |
| Full HD | Yes |
| 3D | No |
| Supported video modes | 1080p |
| Supported graphics resolutions | 1920 x 1200 (WUXGA) |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 10 W |

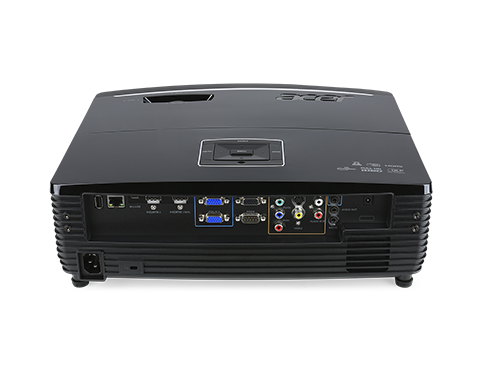

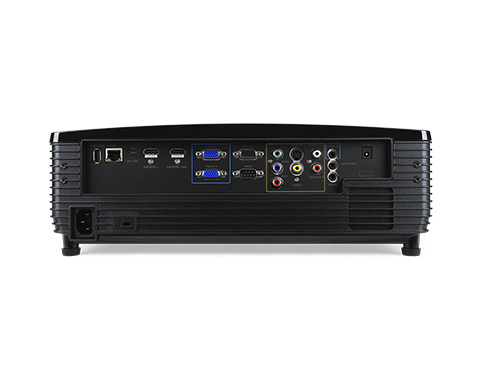

| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 1 |
| Composite video in | 1 |
| Composite video out | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Headphone outputs | 1 |
| Serial interface type | RJ-45 |
| Component video (YPbPr/YCbCr) in | 1 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Storage | |
| Card reader integrated | No |
| Technical details | |
| Product colour | Black |
| Lamp power | 365 W |
| Performance | |
| Vertical scan range | 24 - 120 Hz |
| Horizontal scan range | 15 - 100 kHz |
| Features | |
| Interactive | No |
| Multimedia | |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 10 W |
| Design | |
| Product type | Projector module |
| Product colour | Black |
| Placement | Ceiling |
| Display | |
| Display number of colours | 1.07 billion colours |
| Built-in display | No |
| Power | |
| AC adapter output voltage | 230 V |
| AC input voltage | 120 V |
| Power consumption (typical) | 460 W |
| Power consumption (standby) | 0.5 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
| Weight | 4.5 kg |
