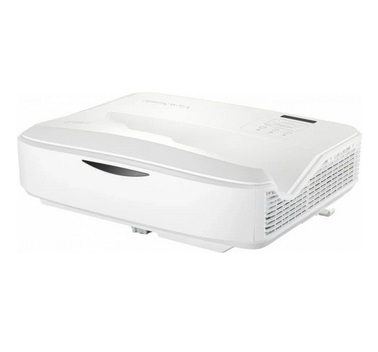

The LS832WU is part of ViewSonic’s Luminous Superior series, a lamp-free high-brightness projector lineup designed for both commercial and educational spaces. This advanced 5,000 ANSI lumens WUXGA ultra short-throw laser projector is a go-to digital signage solution for public and commercial applications, such as museums, storefronts, shopping malls, and airports.

The LS832WU's 0.25 ultra-short throw ratio allows for a 100” screen from only 28 cm away, and the screen size can be further expanded up to 170”, offering a lower cost-per-inch compared to other types of commercial displays. Adopting the 2nd generation Laser Phosphor technology, it produces consistent high brightness for up to 30,000 hours lifespan​. With H/V keystone and 4-corner image adjustment, the LS832WU also offers flexible installation options.

Complete with comprehensive LAN control, it enabcentralised management of multiple devices and is compatible with Crestron, AMX, Extron, and PJ Link AV control systems.

Specifications

• Projection System: 0.67" WUXGA
• Native Resolution: 1920x1200
• Brightness: 5000 (ANSI Lumens)
• Contrast Ratio: 3000000:1
• Display Color: 1.07 Billion Colours
• Light Source Type: Laser Phosphor
• Light Source Life (hours) with Normal Mode: 20000
• Light Source Life (hours) with SuperEco Mode: 30000
• Lens: F=2.44, f=3.70mm
• Projection Offset: 133%±3%
• Throw Ratio: 0.253
• Optical Zoom: Fixed
• Digital Zoom: 0.8x-2.0x
• Image Size: 80"- 170"
• Throw Distance: 0.17-0.66m (100"@0.28m)
• Keystone: H:+/-10° , V:+/-10°
• Audible Noise (Normal): 34dB
• Audible Noise (Eco): 28dB
• Input Lag: 33.2ms
• Resolution Support: VGA(640 x 480) to 4K(3840 x 2160)
• HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
• Horizontal Frequency: 15K- 91KHz
• Vertical Scan Rate: 24- 85Hz

Input

• Computer in (share with component): 1
• HDMI: 2 (HDMI 2.0/ HDCP 1.4/2.2)
• Audio-in (3.5mm): 1
• Microphone in: 1

Output

• Monitor out: 1
• Audio-out (3.5mm): 1
• Speaker: 10W x1
• USB Type A (Power): 1 (5V/1.5A)

Control

• RS232 (DB 9-pin male): 1
• RJ45 (LAN control): 1
• USB Type B (Services): 1

Others

• Power Supply Voltage: 100-240V+/- 10%, 50/60Hz (AC in)
• Power Consumption:
  • Normal: 328W
  • Standby: <0.5W

• Operating Temperature: 5~40℃
• Carton: Brown
• Net Weight: 5.8kg
• Gross Weight: 8.1kg
• Dimensions (WxDxH) with Adjustment Foot: 382x318x132mm
• Packing Dimensions: 518x420x313mm

• OSD Language: English, German, French, Italian, Spanish, Portuguese, Polish, Dutch, Swedish, Norwegian, Finnish, Greek, T Chinese, S Chinese, Japanese, Korean, Russian, Hungarian Czech, Arabic, Thai, Turkish, Farsi, Vietnam, Indonesian, Romania, Slovakian (27 languages)

• User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages
