NOTE: This item currently has a 14-day delivery time and does not ship Next Day.

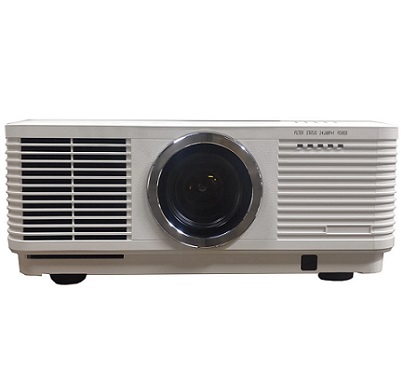

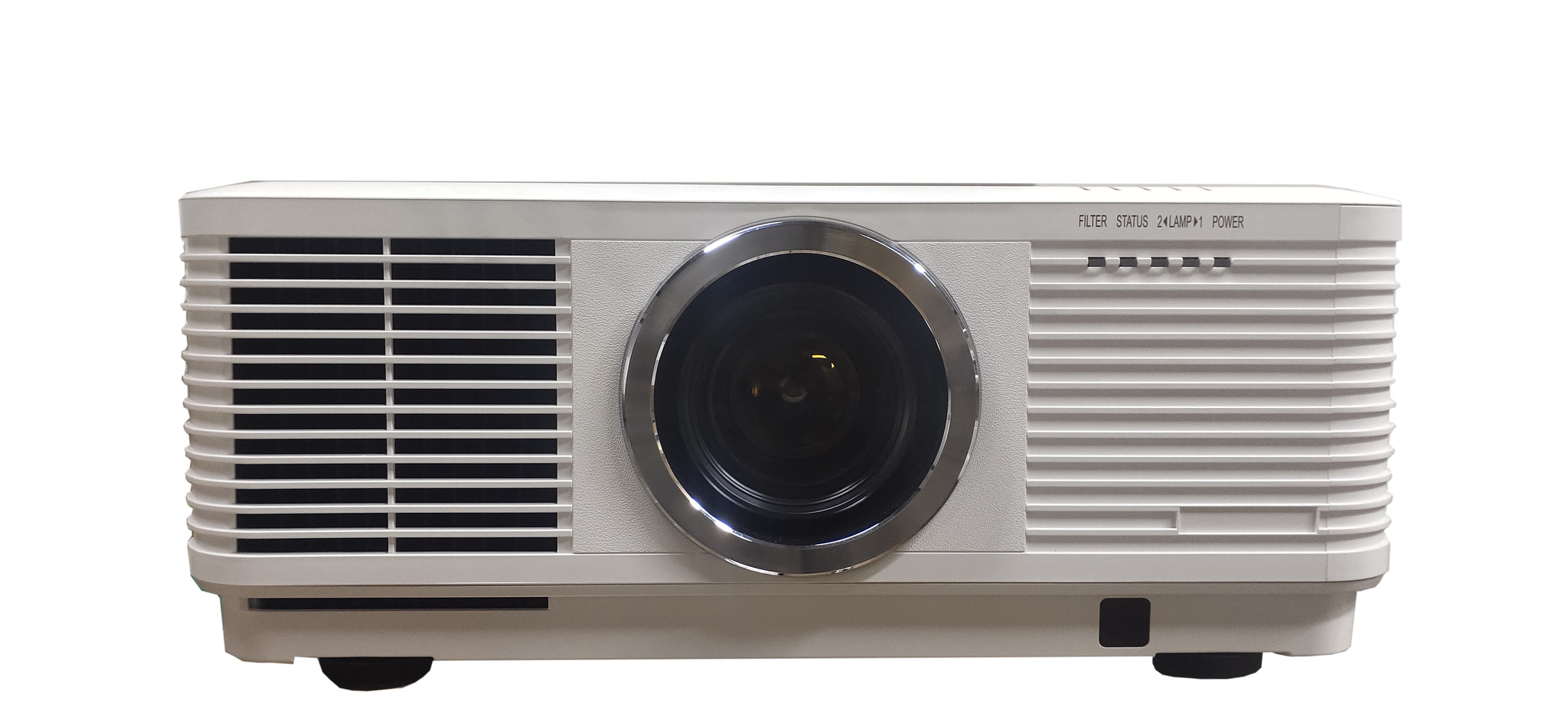

The Pico Genie PG10K DLP Projector is one of the most affordable high-brightness and high-contrast projectors with interchangeable lenses.
Ideal for large image projection in outdoor* or indoor environments thanks to its incredible 10,000 ANSI lumens, high resolution and impressive contrast ratio which delivers a superior image.
Suitable for World Cup screenings, home use, pubs, clubs, churches, events or outdoor cinema screenings, large screenings or bright environments where only a high-powered projection solution will work.
Key Features
- DLP Technology
- 10,000 ANSI Lumens
- 10,000:1 Contrast Ratio
- Perfect clarity with TI DLP DMD 0.67 Chip
- Wide Horizontal & Vertical Powered Lens Shift
- 1920 x 1200 (WUXGA) Resolution
- Dual 420W Lamp
- 4000 - 6000 Hours Life
- Geometric Correction (Project onto spheres or curves)
- Edge Blending
- Corner Correction
- Various Lens Options
- 1m up to 74m Throw Distance
Geometric Correction, Lens Shift and Keystone for Projection in Diverse Spaces
The PG10K offers advanced installation options with Geometric Correction, a wide lens shift and keystone correction. These installed features allow the delivery of perfectly proportioned images despite installation or placement challenges in any venue.
The LCD version has a +70% powered lens shift, whereas the DLP version has a +55% powered lens shift. The standard lenses also differ from one another as the DLP version has a 1.44-2.6:1 lens and the LCD version has a 1.8-2.6:1 lens. There are differences in power consumption, throw ratios, lamps and more outlined in the table below.
Specification Differences
PG10K DLP |
PG10K LCD | |
| Lamp | 2pcs Panasonic: 420W | Panasonic: 480W |
| Display Technology | DLP | LCD |
| Lamp Consumption(W) | Normal: 2*420W |
Normal: 480W |
| Standard Lens | 1.44-2.6:1 | 1.8-2.6:1 |
| Throw Ratio | 100"@3.6m 1.72（wide）--2.36(tele) |
100"@3.142m 1.55（wide）--2.81(tele) |
| Lens Shift V | ±55%(Powered) | ±70%(Powered) |
| Power Consumption （Normal) |
900W MAX | 590W MAX |
| Power Consumption （ECO) |
500W | 370W |
| 360 Degree Image Rotation | No | Yes |
| Geometric Lens Correction | Yes | No |
Optional Lenses Available Suitable for Any Application
Perfect for when installation flexibility is a must, this projector can fit a wide range of versatile lenses (available separately) from ultra-short throw 0.8:1 through to tele throw 4.3-7.3:1. with generous lens shift capabilities of up to 60% vertical and 30% horizontal (depending on the specific lens).
See more information for each of the lenses from the lens specification table below.
This projector will always come with the standard throw lens included, any additional lenses can be purchased from the drop-down menu above.
Unlike many similar projectors with interchangeable lenses, the price includes both the standard throw lens and the body of the projector making it amazing in value.
| Key parts | PG10K DLP | |
| Panel | LCX186A(B11 SML) | |
| PJ Lens | F:1.8~2.6 | |
| Lamp | 2pcs Panasonic:420W | |
| PW IC | Topaz: PWC878 | |
| Sony IC | CXD3553+CXA3832(1+1) | |
| Brightness | ||
| Brightness （Typ） ( Ansi Lumens ) |
10,000 | |
| Brightness （Min） ( Ansi Lumens ) |
8,000 | |
| Overall Spec | ||
| Panel | Display Panel | 0.67 DLP |
| Display Technology | DLP | |
| Native Resolution | WUXGA (1920X1200) | |
| Lamp | Lamp Consumption(W) | Normal: 2*420W |
| Lamp Lifetime(H) | Normal:5000Hrs/ECO:6000Hrs | |
| Projection Lens |
Zoom/Focus | Powered |
| Throw Ratio | 100"@3.6m 1.72（wide）--2.36(tele) | |
| F | F:1.8~2.6 | |
| f | f=24.0mm~43.2mm | |
| Zoom Ratio | 1.8x optics | |
| Screen size | 40-300 Wide(inch) | |
| Lens Shift V | ±55% (Powered) | |
| Lens Shift H | ±30% (Powered) | |
| CR | Contrast Ratio(Min) | 100000:1 |
| Dynamic Contrast | 1000000:1 | |
| Noise | Noise(dB) | Normal: 40dB@2m ECO: 34dB@2m |
| Uniformity | Uniformity (Actual Min) -JISX6911 | 90% |
| AR | Aspect Ratio | 16:10 (Standard)/4:3 (Compatible) |

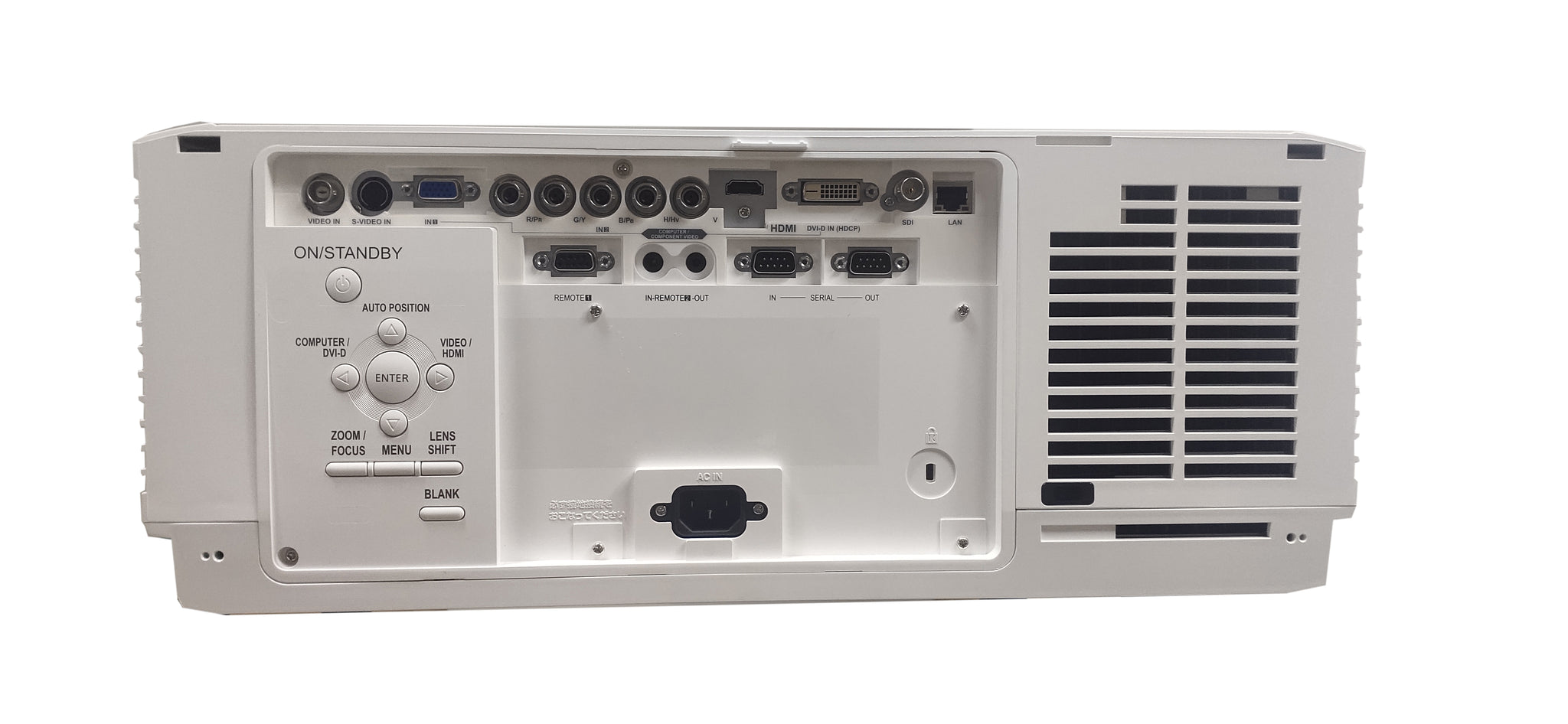

| Terminal(I/O port) | ||
| Input | VGA | *1 |
| Audio (Mini Jack,3.5mm） | *2 | |
| BNC | *5 | |
| Video | *1 | |
| Audio in（L/R） --RCA |
n/a | |
| S-Video | *1 | |
| HDMI | *2 (One is Compatible with MHL) | |
| USB-A | *1 1. Support Memory viewer 2. WiFi Dongle (Optional Accessory) | |
| Micro USB | *1（Display） | |
| RJ45 | n/a | |
| Output | VGA | *1 |
| Audio out (Mini Jack 3.5mm） | *1 | |
| Control | RS232 | *1 |
| RJ45 | *1 (Control) | |
| Micro USB | *1 1. For upgrade 2. Mico-USB Display | |
| Wired Remote (IN) | *1 | |
| Wired Remote (OUT) | *1 | |
| HD-Base T | No | |
| General Spec | ||
| Audio | Speaker | 1*10W |
| Power Consumption |
Power Requirements | 100~240V@ 50/60Hz |
| Power Consumption （Normal) |
900W MAX | |
| Power Consumption （ECO) |
500W | |
| ECO Standby Mode Power Consumption |
<0.5W | |
| Network standby Power Consumption |
<3W | |
| Temp.&Humidity | Operating Temp. | 0℃~40℃(35~ ECO) |
| Store Temp. | -20℃~~60℃ | |
| Operating Humidity | 20%~85% | |
| Storage Humidity | 10%~85% | |
| Mechanical Design | Security bar | Yes |
| Password protections | Yes | |
| Control Panel Lock | Yes | |
| Kensington Lock | Yes | |
| Ventilation (In/Ex) | Side/Side | |
| Lamp access | Top | |
| Filter Access | Side | |
| Dust filter | ESD filter | |
| Other Functions | ||
| Keystone | Keystone Correction | V: ±30°（auto+manual） H: ±15°（manual） Pincushion/Barrel Correction Corner Keystone |
| OSD | Languages | 26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch, Portuguese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak, Vietnamese, Thai, Farsi |
| LAN Control | LAN Control-RoomView (Crestron) |
Yes |
| LAN Control-AMX Discovery | Yes | |
| LAN Control-PJ Link | Yes | |
| Scanning Frequency |
H-Synch Range | 15~100KHz |
| V-Synch Range | 48~85Hz | |
| Display Resolution |
Computer Signal Input | VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,Mac, |
| Video Signal Input | PAL, SECAM, NTSC 4.43, PAL-M, PAL-N, PAL-60, 480i, 480p, 576i, 576p, 720p, 1080p and 1080i | |
| SW setting | Auto Setup | INPUT SEARCH, AUTO PC, AUTO Keystone |
| Audio muting(Muting) | Yes | |
| Suspend | Yes (5 minutes no signal as default) | |
| Picture mode | Dynamic, Standard, Cinema, Blackboard, Colorboard, DICOM | |
| Lamp mode | NORMAL, ECO | |
| Filter Cleaning Cycle | 100/200/300 hours | |
| Cooling time | 60s,90s | |
| Closed caption | Yes | |
| High altitude | Yes(1400~2700m) | |
| Signal Power On | Yes | |
| Turn on countdown | Customized-(0S,10S, 30S..) | |
| Auto Ceiling | Yes | |
| D-Zoom | 1~33 | |
| 360° projection | Yes | |
| Others | Edge Blending | Yes |
| Dimension&Weight | ||
| MAX Dimensions (WxHxD mm) |
481*179*418 mm | |
| Net. Weight (KG) | 9.98 | |
| Packaging Box Dimensions (WxHxD mm) |
620*585*295 mm | |
| Gross. Weight (KG) | ~13.2 | |
| Accessory | ||
| Manual Languages | Chinese, English | |
| Standard Accessories | Power cord, VGA cable, Remote control& RC Battery | |
| Warranty | 5 years Projector Warranty (Lamp 6 months) |
