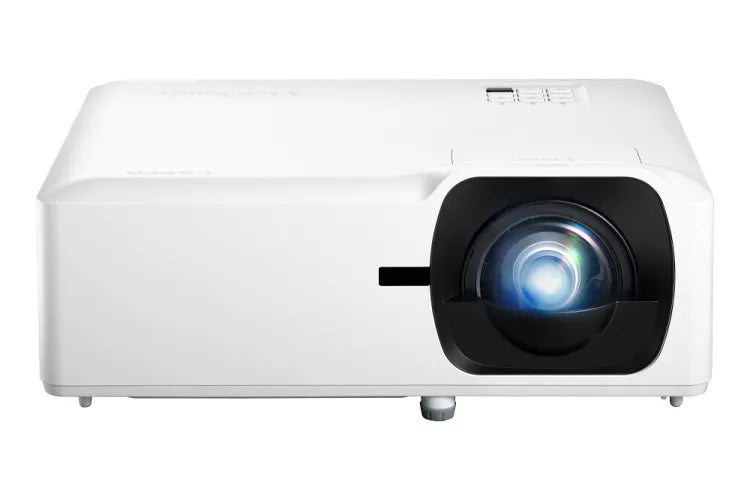

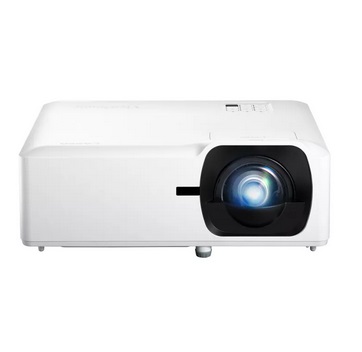

The Luminous Superior series from ViewSonic is a high-brightness projector that is lamp-free and suitable for both business and educational purposes. The device uses the latest 2nd generation laser phosphor technology, which provides 4,200 ANSI Lumens of brightness without the need for toxic mercury. This not only saves costs and effort on frequent lamp replacement but also promotes sustainability by reducing environmental impact. The projector's lamp-free light source produces clear and vivid images with 1080p resolution and rich colours.
This projector is a versatile option for creating an immersive experience in various spaces like restaurants, gyms, and galleries. Its short throw ratio, flexible installation options, and easy image adjustments make edge blending effortless. With a 0.49 ratio, it can project a 100" screen size from only 1.1 m away, without being affected by shadows. The LS710HD feature ensures perfectly-shaped images even when projected at an angle through H/V keystone and 4 corner correction. It also offers versatile applications with 360° projection and portrait mode.
Equipped with HDMI 2.0b, the projector allows access to original 4K quality content with HDR/HLG support, ensuring high-quality visuals. The LS710HD utilizes the 2nd generation laser phosphor technology, which improves brightness by around 20%, enhances heat resistance, and offers a smaller module design. These advancements result in consistent image quality in different ambient settings, increased reliability, and a more compact size for extended use in various scenarios.
Thanks to its 4,200 ANSI Lumens brightness and 1080p Full HD resolution, the LS710HD delivers clear visuals with vibrant colours, making it suitable for large venues with ample ambient light. Unlike commercial displays, this projector allows for an up-to-300" image size, providing a larger and easier installation option. The short throw ratio of 0.49 ensures a 100" visual from only 1.1 m away, eliminating distracting shadows and offering immersive edge-blending viewing.
Effortless image adjustment is possible with the projector's horizontal and vertical keystone correction and 4 corner adjustment features, ensuring a perfectly proportioned picture every time. The LS710HD can be freely rotated at any angle vertically, enabling projection onto ceilings, walls, or floors. The portrait mode allows users to turn the projector 90 degrees, increasing the vertical field of view and expanding the applications for projection mapping, staging, and advertising.
The LS710HD comes with an HDMI 2.0b/HDCP 2.2 port, providing access to original 4K quality content with HDR/HLG support at a 60Hz frame rate from external devices like Roku sticks or 4K Blu-ray players. This ensures the projection displays the brightest whites, deepest blacks, and more detailed visuals.
Impress any audience with ViewSonic's exclusive colour technology, which elevates your presentations with a true-to-life colour experience. The LS710HD is compatible with Crestron, AMX, PJ Link, ATEN, and Extron systems, allowing for centralized control and management efficiency. It is equipped with ViewSonic vController, an easy-to-use network management tool.
Designed for non-stop 24/7 operation, the LS710HD features an advanced cooling design that maintains image quality and work performance even with continuous use. This makes the projector ideal for applications that require round-the-clock operation. Updating the projector software is made simple with a USB cable connection to your laptop, eliminating the need for trips to the service centre. The built-in 5V/1.5A USB output conveniently provides power to HDMI wireless dongles, eliminating the need for separate power adapters when streaming multimedia content.
Projector | |
---|---|
Number of colours | 1.07 billion colours |
Projector native resolution | 1080p (1920x1080) |
Native aspect ratio | 16:9 |
Screen size compatibility | 1016 - 7620 mm (40 - 300") |
Projection distance | 0.43 - 3.25 m |
Contrast ratio (typical) | 3000000:1 |
Zoom capability | Yes |
Vertical scan range | 23 - 120 Hz |
Horizontal scan range | 15 - 102 kHz |
Keystone correction, vertical | -15 - 15° |
Keystone correction, horizontal | -15 - 15° |
Projector brightness | 4200 ANSI lumens |
Zoom type | Manual |
Smart projector | No |
Lamps | |
Light source type | Laser |
Service life of light source | 20000 h |
Service life of light source (economic mode) | 30000 h |
Light source | |
Light source type | Laser |
Service life of light source | 20000 h |
Service life of light source (economic mode) | 30000 h |
Lens system | |
Fixed focal length | 7.51 mm |
Zoom capability | Yes |
Focus | Manual |
Throw ratio | 0.49 |
Offset | 132% |
Digital zoom | 2x |
Zoom type | Manual |
Fixed aperture | 2.8 |
Scanning frequency | |
Vertical scan range | 23 - 120 Hz |
Horizontal scan range | 15 - 102 kHz |
Video | |
Analog signal format system | NTSC, PAL, SECAM |
Full HD | Yes |
3D | No |
Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
Audio | |
Built-in speaker(s) | Yes |
Number of built-in speakers | 2 |
RMS rated power | 30 W |
Ports & interfaces | |
HDMI connector type | Full-size |
HDMI version | 2.0 |
HDMI ports quantity | 2 |
Ethernet LAN (RJ-45) ports | 1 |
USB 2.0 ports quantity | 1 |
Serial interface type | RS-232 |
PC Audio out | Yes |
DVI port | No |
AC (power) in | Yes |
Service port type | USB Type-A |
USB 2.0 Type-A ports quantity | 1 |
Network | |
Smart TV | No |
Ethernet LAN | Yes |
Wi-Fi | No |
Ethernet LAN (RJ-45) ports | 1 |
Storage | |
Card reader integrated | No |
Sound emission | |
Noise level | 32 dB |
Noise level (economic mode) | 29 dB |
Technical details | |
Product colour | White |
HDCP | Yes |
On Screen Display (OSD) | Yes |
On Screen Display (OSD) languages | Danish, German, Hungarian, Arabic, Dutch, Norwegian, English, Indonesian, Swedish, Spanish, Italian, Polish, Thai, Japanese, Portuguese, Turkish, Romanian, Simplified Chinese, Finnish, Korean, Russian, Vietnamese, Traditional Chinese, French, Greek, Czech, Slovak |
Quantity per pack | 1 pc(s) |
Image lag time | 49.9 ms |
Performance | |
Market positioning | Business |
HDCP | Yes |
On Screen Display (OSD) | Yes |
On Screen Display (OSD) languages | Danish, German, Hungarian, Arabic, Dutch, Norwegian, English, Indonesian, Swedish, Spanish, Italian, Polish, Thai, Japanese, Portuguese, Turkish, Romanian, Simplified Chinese, Finnish, Korean, Russian, Vietnamese, Traditional Chinese, French, Greek, Czech, Slovak |
Vertical scan range | 23 - 120 Hz |
Horizontal scan range | 15 - 102 kHz |
Noise level | 32 dB |
Noise level (economic mode) | 29 dB |
Number of OSD languages | 27 |
Features | |
Interactive | No |
HDCP | Yes |
On Screen Display (OSD) | Yes |
On Screen Display (OSD) languages | Danish, German, Hungarian, Arabic, Dutch, Norwegian, English, Indonesian, Swedish, Spanish, Italian, Polish, Thai, Japanese, Portuguese, Turkish, Romanian, Simplified Chinese, Finnish, Korean, Russian, Vietnamese, Traditional Chinese, French, Greek, Czech, Slovak |
Noise level | 32 dB |
Noise level (economic mode) | 29 dB |
Number of OSD languages | 27 |
HDCP version | 1.4/2.2 |
Multimedia | |
Built-in speaker(s) | Yes |
Number of built-in speakers | 2 |
RMS rated power | 30 W |
Design | |
Market positioning | Business |
Product type | Standard throw projector |
Cable lock slot type | Kensington |
Product colour | White |
Cable lock slot | Yes |
Display | |
Built-in display | No |
Power | |
AC input voltage | 100 - 240 V |
AC input frequency | 50/60 Hz |
Power source | AC |
Power consumption (typical) | 245 W |
Power consumption (standby) | 0.5 W |
Packaging data | |
Package width | 496 mm |
Package depth | 195 mm |
Package height | 387 mm |
Package weight | 6.6 kg |
Security | |
Cable lock slot type | Kensington |
Cable lock slot | Yes |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions | |
Package width | 496 mm |
Package depth | 195 mm |
Package height | 387 mm |
Weight | 4.5 kg |
Width | 337 mm |
Depth | 265 mm |
Height | 131.5 mm |
Package weight | 6.6 kg |
Packaging content | |
Remote control included | Yes |
Warranty card | Yes |
Quick start guide | Yes |
Logistics data | |
Quantity per pack | 1 pc(s) |
