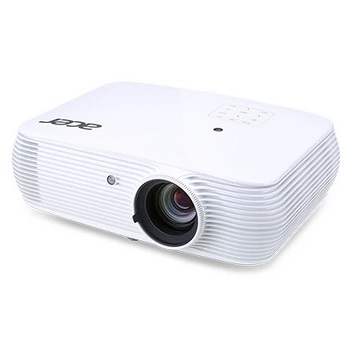

Acer P5535 brings presentations to life and keeps your meetings focused with clarity and precision.
Acer P5535 features 4,500 lumens high brightness and LumiSense+, which enables presenting data with a clearer and sharper edge even in a large meeting room.
1.3x zoom & 4-corner keystone correction makes installation so quick and so easy.
Feature Highlights
Expressive display
Enhanced usability
Installation flexibility
Eco-friendly functionality
Product Specification
|
Model name |
P5535 |
|
Projection system |
DLP® |
|
Resolution |
1080p (1,920 x 1,080) Maximum WUXGA (1,920 x 1,200) |
|
Brightness |
4,500 ANSI Lumens (Standard), 3,600 ANSI Lumens (ECO), (Compliant with ISO 21118 standard) |
|
Aspect ratio |
16:9 (Native), 4:3 (Supported) |
|
Contrast ratio |
Dynamic Black 20,000:1 |
|
Throw ratio |
1.13 ~ 1.47 (80"@2m) |
|
Projection lens |
F = 2.5 ~ 2.782, f = 16.91mm~21.60mm, Manual Zoom & Focus |
|
Keystone correction |
+/-20° (Vertical, Manual & Auto), +/-20° (Horizontal, Manual), 4-Corner adjustment |
|
Lamp life |
4,000 Hours (Standard), 10,000 Hours (ECO), 15,000 Hours (ExtremeEco) |
|
Noise level |
24 dBA (ECO) |
|
Input interface |
Analog RGB/Component Video (D-sub) x 2 Composite Video (RCA) x 1 HDMI1.4a/MHL2.1 (Video, Audio, HDCP) x 1 HDMI1.4a(Video, Audio, HDCP) x 1 PC Audio (Stereo mini jack) x 1 |
|
Output interface |
Analog RGB (D-sub) x 1 PC Audio (Stereo mini jack) x 1 DC Out (5V/2A, USB Type A) x 1 |
|
Control interface |
USB (Type A) x 1, share output port RS232 (D-sub) x 1 |
|
Network interface |
Ethernet port (RJ45) x 1 USB (Type A, internal) x 1, for optional wireless dongle |
|
Dimensions |
315 x 214 x 103 mm (12.4" x 8.4" x 4.1")
|
|
Weight |
2.73 Kg (6 lbs) |
Notes
1 Mobile USB display can receive content with resolution up to 1080p. The display result will depend on projector’s native resolution.
