Creality Falcon 2 40W, an upgrade to the 22W variant, is the world’s first laser engraver to incorporate an adjustable light beam feature. If you are looking for a laser cutter that offers high performance, then look no further than the Creality Falcon2 40W as it incorporates a number of breakthrough features, such as adjustable spot adjustment for higher work efficiency and finer work details.
All these allow the pot size of the Creality Falcon2 40W to be adjusted according to engraving and cutting requirements. Therefore, the laser engraver is particularly well suited to cutting thicker objects with a full-power laser spot, and engraving and cutting thinner objects with a small spot.
Based on the latest FAC spot compression technology, 8 powerful 5.5W laser diodes are compressed to increase the laser power to 40W.
This feature allows for adjusting the light spot size, resulting in a more refined workpiece. Large light spots are better for cutting thicker objects efficiently, while small light spots are preferable for engraving and cutting thinner ones.
With 100% improvement in carving efficiency, Falcon 2 allows you to spend less time creating more.
Experience the magic of laser engraving on stainless steel, as the super powerful laser beam heats the metal surface, producing a mesmerizing and vibrant spectrum of colors.
You can adjust the air assist either manually using the knob or automatically through LightBurn software to obtain a cleaner result while protecting the laser lens from smoke. Strong airflow is recommended for cutting, while weak airflow is ideal for engraving.
Compatible with a variety of systems, including Windows and macOS systems, and software such as LaserGRBL and LightBurn.
Airflow monitoring indicates the current airflow volume. It enables you to adjust the airflow based on your engraving needs.
The built-in lens monitoring system will trigger an alarm when the lens is dirty enough, which helps avoid lens breakage and frequent replacement.
When a flame is detected, the indicator will flash red with an alarm and the machine will stop immediately.
Creality Falcon 2 supports offline creation, and you can feel free to create anytime, anywhere. Also, it can position and adjust precisely without connecting to a computer. Short press to fine-tune 1mm, and long press to adjust 10mm/s.
Creality Falcon 2 40W laser engraving machine has a bidirectional limit switch, active stop function, security lock design, emergency stop button, and laser protective cover.
The light beam can be adjusted according to the engraving and cutting needs, making the work more refined.
Based on the latest FAC spot compression technology, 8 powerful 5.5W laser diodes are compressed to increase the laser power to 40W.
With 100% improvement in carving efficiency, Falcon 2 40W allows you to spend less time creating more.
When the stainless steel is heated by a super powerful laser beam, the metal surface will physically react and produce hundreds of colors, bringing your works to life.
The integrated air-assist function not only offers step-less adjustment but can also automatically adjust the airflow through LightBurn software to meet different cutting and carving needs.
Five additional safety protections are added to the Falcon2 40W for greater security and peace of mind. The bidirectional limit switch ensures that, if the laser hits the boundary, the laser engraver will stop automatically and a buzzer will sound an alarm. An active stop function is also added, automatically stopping the Falcon2 40W in case of accidental tilt, flip or drop, sounding an alarm, and sending an alert in the process. A security lock design, emergency stop button, and laser protective cover are also incorporated for added safety and security.
General | Brand: Creality Type: Laser Engraver Model: Falcon 2 40W Color: Silver |
Specification | Machine Power: Max. 240W Laser Module Output Power: 40W Laser Spot: Adjustable: 0.1mm/0.15mm Wavelength: 455±5mm Engraving Speed: Max. 25000mm/min Working Area: 400*415mm Voltage Input: 100-240V, 50-60Hz Voltage Output: DC 24V 9A Connecting Interfaces: TF Card, Type-C Certification: IEC60825, FDA, CE, ROHS, FCC, UKCA, UL Report, PSE, etc. Operating System: Windows, MacOS Control Software: LightBurn, LaserCRBL File Types: jpeg, jpg, png, bmp, svg, dxf, etc. Material for Engraving: Cardboard, Felt, Cardboard, Wood, Bamboo, Leather, Fabric, Acrylic, Brushed Stainless Steel, Dark Anodized Aluminum, Painted Metal, etc. Material for Cutting: Cardboard, Felt, Cardboard, Wood, Bamboo, Leather, Fabric, Acrylic, Brushed Stainless Steel, etc. |
Weight & Size | Product Weight: 7.4kg Package Weight: 10.94kg Product Size(L x W x H): 664*570*193mm Package Size(L x W x H): 725*625*150mm |

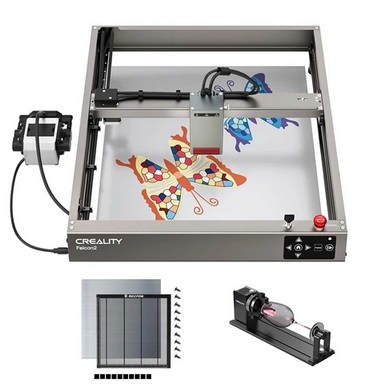

Package Contents | 1 x Machine Frame 1 x Laser Module 1 x Power Supply 1 x Air Assist 8 x Raiser Stand 1 x USB-C Cable 1 x Goggles 1 x Anti-static Brush 1 x Key 1 x Anti-static Brush 1 x TF Card & Card Reader 1 x USB-A to USB-C Adapter 1 x Metal Protection Plate 1 x Set of Basswood Board 1 x Set of Black Cable Straps 1 x Storage Box 1 x Protective Lens 1 x Dust-free Cloth 1 x Tweezers 1 x Set of M3x10/M4x6 Hexagon Socket Head Screw 1 x Set of Open-end Wrench M1.5/M2/M2.5/M3 Allen Wrench 1 x User Manual 1 x Creality Rotary Kit Pro 1 x Mecpow Honeycomb Working Table 1 x Aluminum Plate 10 x Fixing Nails 10 x Silicone Pad |
