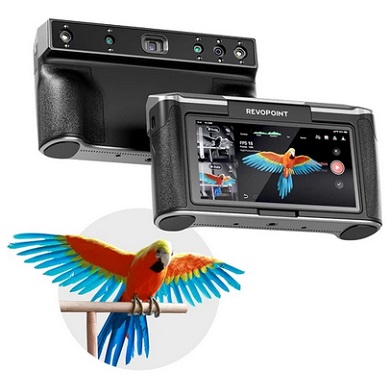

MIRACO's innovative 4Depth camera system allows you to capture everything from small screws to cars to large machinery. You can freely switch between nearby mode for capturing fine details and small objects, and the far-view mode that quickly captures large areas and objects.
No cables or PC is required. MIRACO does everything in one device from scanning to editing. Its powerful hardware provides up to 0.02mm single-frame accuracy to ensure you capture detailed models.
2K 6-inch AMOLED touch screen for vivid scanning and editing Rotate the screen 180° for easy viewing from any angle.
Continuous scanning mode allows you to quickly create detailed 3D models at up to 15 fps Switching to Photo Surveying Mode allows you to easily capture distinctive objects or non-distinctive objects with high precision and minimal point groups.
With MIRACO's 48-megapixel RGB camera and flash LED system, you can create a 3D model as pictured.
MIRACO Pro's powerful 8-core 2.4GHz processor, 32GB RAM (Capture up to 10,000 frames per scan), Capture scans with 256GB hard disk drive, and edit seamlessly. Transfer projects to macOS or Windows PC via optical speed Wi-Fi 6 or Type-C USB Export 3D models in STL, PLY, and OBJ format to ensure compatibility with 3D modeling and 3D printing software.
The MIRACO is portable and packed with technology. The compact size and only 750g weight make it easy to carry and operate with one hand. The battery can be scanned for up to 2 hours and can charge up to 80% of the capacity in just 35 minutes.
| General | Brand: Revopoint Type: 3D Scanner Model: MIRACO Pro Color: Black |
| Specification | Single-frame Accuracy: up to 0.05 mm Single Capture Area at Nearest Distance: 28 x 53 mm at 100 mm Single Capture Area at Furthest Distance: 975 x 775 mm at 1000 mm Two Capture Modes: Single-shot Mode, Continuous Capture Mode Minimum Scan Volume: 10 x 10 x 10 mm Working Distance: 100 - 1000 mm Auxiliary Lighting: Infrared Fill Lights, Flash LEDs Storage: 256 GB eMMC Memory (RAM): 32 GB DDR4 Battery Capacity: Internal lithium Battery 5,000 mAh, supporting up to 2-hour continuous scanning Tracking Methods: Feature, Marker Connector Type: USB, Type-C Compatible Systems: Windows 10/11, macOS Special Object Scanning: Use scanning spray for transparent, dark, or highly reflective objects. Output Formats: PLY, OBJ, and STL Built-in Chip Computing: Depth Map Computing, 3D Scanning, Point Cloud Processing and Editing Technology: Quad-camera Infrared Structured Light Fused Point Distance: 0.05 mm Scanning Speed: up to 15 fps Maximum Scan Volume: 4000 x 4000 x 4000 mm Screen: 6” 2k AMOLED Touch Screen 3D Light Source: Class 1 Infrared Light Position Sensors: 9-axis IMU RGB Camera Resolution: up to 48 Megapixels CPU: 8-core CPU, 2.4 GHz Protection Rating: IP45 Wi-Fi Type: Wi-Fi 6 Operating System: Native Android System Scanning Environment: Indoors and Outdoors 3D Printing Compatible: Yes PC Requirements: No PC required |
| Weight & Size | Product Weight: 0.75kg Package Weight: 3kg Package Size(L x W x H): 48x29x9.7cm |
| Package Contents | 1 x 3D Scanner 4 x Far-mode Calibration Board 1 x Large Calibration-board Sheet 1 x USB Type-C to HDMI Adapter 1 x Tripod 1 x Mini Turntable & Sample Bust 1 x Turntable Topper & Turntable Power Cable 1 x Scanner Bag 1 x Near-mode Calibration Board 2 x Magic Mat 1 x Wrist Strap 1 x 65W Dual USB Type-C Port Power Adapter 1 x USB Type-C to C Cable (1.8 m) 1 x Cleaning Cloth & Markers 1 x Certificate & Warranty Card |
