Due to MINI 2's blue light technology, scanning results may vary based on the material and color of the scanned object. We recommend using scanning spray as an aid during scanning for improved results.

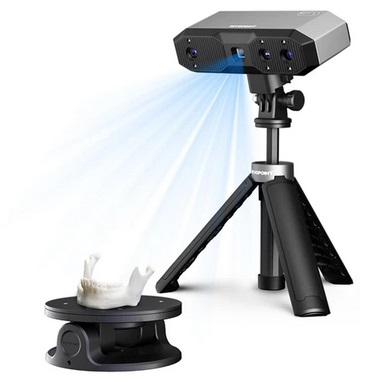

Effortlessly capture tiny intricate details using the Revopoint MINI 2 3D scanner's industrial-grade blue light technology powering a single-frame precision of up to 0.02 mm at fast capture speeds of up to 16 fps.
MINI 2's industrial-grade ultra-high resolution blue light technology's narrower wavelength enables better filtering of interference from ambient light for better precision, accuracy, and higher-quality 3D models. Class 1 blue light is 100% skin-safe, but you may feel minor discomfort if it shines directly into your eyes.
The MINI 2 offers a larger single capture range of up to 168 x 132 mm for improved tracking and scanning of larger objects. Additionally, the RGB camera's bigger aperture and Flash LEDs enhance the capture of intricate texture and color details. The 6 Flash LEDs also improve marker recognition for smoother, featureless object scanning.
MINI 2’s IMU removes faulty frames caused by fast movement or shaky hands and improves tracking. Easily start scans and adjust the exposure using MINI 2's three new tactile buttons.
MINI 2’s upgraded connection options provide stable, fast connections with a Type-C USB connection for plug-and-play scanning or Wi-Fi 6 for mobile scanning.
Weighing only 175g, the MINI 2 is comfortable to hold and carry. It comes with free, user-friendly scanning software, Revo Scan, that does everything from scanning to post-processing. Export models in STL, FLY, and OBJ formats ready for use in 3D printing and modeling software.
| General | Brand: Revopoint Type: 3D Scanner Model: MINI 2 Advanced Edition Color: Black |
| Specification | Technology: Dual-camera Blue Structured Light Single-frame Precision: Up to 0.02 mm Single-frame Accuracy: Up to 0.05 mm Single Capture Area at Nearest Distance: 52 x 64 mm at 120 mm Single Capture Area at Furthest Distance: 168 x 132 mm at 250 mm Working Distance: 120 - 250 mm Point Distance: Up to 0.02 mm Minimum Scan Volume: 10 x 10 x 10 mm Scanning Speed: Up to 16 fps Position Sensors: 9-axis IMU 3D Light Source: Class 1 Blue Light Tracking Methods: Feature/Marker Output Formats: PLY, OBJ, and STL PC Requirements (macOS): RAM: ≥8GB CPU (or better): M1 Pro/M1 Max/M1 Ultra, M2/M2 Pro/M2 Max/M2 Ultra, M3/M3 Pro/M3 Max Depth Camera Resolution: 2 Megapixels RGB Camera Resolution: 2 Megapixels Outdoor Scanning: No Color Scanning: Yes Ready to Print 3D Models: Yes Compatible Operating Systems: Window 10/11 (64-bit), Android, iOS, macOS White Flash LEDs: Yes CPU: 2 core, 1.8 GHz Wi-Fi: Wi-Fi 6 Connector Type: USB Type-C User Recalibration: Yes Special Object Scanning: Use scanning spray for transparent, dark, or highly reflective objects. PC Requirements (Windows): RAM: ≥16GB CPU (or better): i5 12th/13th/14th, i7 12th/13th/14th, i9 all series |
| Weight & Size | Product Weight: 0.175kg Package Weight: 2kg Package Size(L x W x H): 28.5x24x11cm |
| Package Contents |
1 x 3D Scanner |
