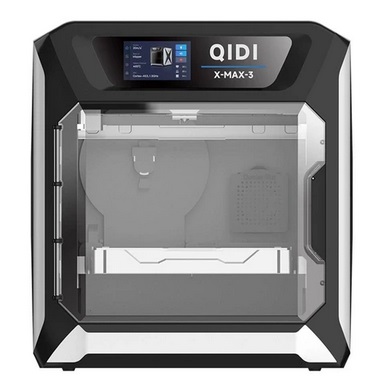

QIDI Tech X-Max 3 3D printer is based on Klipper, capable of printing at a maximum speed of 600mm/s with 20000mm/s² printing acceleration and 35mm³/s extruder flow. Apart from the Klipper firmware, the printer also features a high-speed extruder and a CoreXY structure, making it, therefore, the best high-speed FDM printer of the industrial-grade lineup.
The all-metal frame is ultra-stable, reinforced with metal crossbeams at the bottom, and resistant to deformation.
Improved surface straightness, and a 60% lower error deflection. Highly durable and has no need for frequent maintenance.
With TMC2209 silent drive and CoreXY structure, this 3D printer can reduce motion Inertia and improve the motion speed, offering a low-noise printing experience.
The extruder with a 9.5:1 transmission ratio is steadier, stronger, and faster. The new cooling system can reduce the risk of clogs and ensure smooth extrusion.
Copper alloy nozzle for better thermal conductivity, smooth printing and to be more durable. Hardened steel nozzle for abrasive materials, and long-term usage. While both have a max print temp of 350 Celsius.
With an independent heating device that has a maximum temp of 65 Celsius, QIDI X-Max 3 3D printer can high-efficiency print PET-CF, PAHT-CF, etc. It also has a chamber circulation fan with an activated carbon air filter.
The higher the temperature in the heated chamber, the larger the material range that can be printed. The heated chamber ensures that the part is built uniformly without the generation of internal stresses.
Klipper adaptive meshing and purging, fast ensure flawless first layer for every 3D print.
The double-sided flexible magnetic HF plate has excellent adhesion, no warping trouble, and is easy to remove the prints.
The highly acclaimed QIDI slicer software has both normal mode and expert mode, which is also easy for beginners to get started. It also supports other third-party software, such as Ultimaker Cura, Simplify3D, PrusaSlicer, etc.
| General | Brand: QIDI Type: 3D Printer Model: X-Max 3 Color: Black |
| Specification | Technology: FDM Build Volume: 325*325*315mm Printing Speed: ≤600mm/s Extruder Flow: 35mm³/s Extruder Temp: ≤350°C Hotend (Included): Copper alloy nozzle hotend for Common materials; Hardened steel nozzle hotend for Abrasive materials Auxiliary Part Cooling Fan: Yes Chamber Temperature Control: 65 Celsius Independent Chamber Heating Chamber Circulation Fan with Activated Carbon Air Filter: Yes Screen: 5.0 inch, 800*480 touchscreen Seal Print: Dryer Box + Desiccant Connection Options: 150M 2.4G WiFi; USB Flash Drive/Ethernet Cable Rated Power: 900W Recommended Filament: PAHT-CF, PET-CF, PA12-CF Compatible Filament: PLA, ABS, ASA, PETG, TPU, PC, UltraPA, Nylon, etc. Structure: CoreXY Z-axis: Double Z axis X-axis: High-grade hardness steel linear hollow optical axis Firmware: Klipper Printing Acceleration: 20000mm/s² Printing Accuracy: ±0.1 mm Filament Diameter: 1.75mm Bed Leveling: Automatic Leveling Extruder Transmission Ratio: 9.5:1 Hot End: Ceramic Heating Core Extruder: High-flow Direct Drive Extruder Nozzle Diameter: 0.4mm (0.2,0.6,0.8mm Optional) Hot Bed Temperature: ≤120 Celsius Printing Plate: Double-Sided Flexible Magnetic HF Plate Filament Detection: Yes Resonance Compensation: Yes Pressure Advance: Yes Voltage: 100-240VAC, 50/60Hz Main Processor: Cortex-A53, 64-bit Processor, 1.5Ghz,8G-EMMC,1G DDR3 Slicer: QIDI Print and other third-party software, such as Ultimaker Cura, Simplify3D, PrusaSlicer, etc. Operating System: Windows, MacOS, Linux Assembled: Assembled and First Print within 10 minutes |
| Weight & Size | Product Weight: 30.2kg Package Weight: 35kg Product Size(L x W x H): 553x553x601mm Package Size(L x W x H): 650x650x720mm |
| Package Contents | 1 x 3D Printer 1 x Dryer Box 1 x 500g Filament 1 x Filament Spool Holder 1 x Holder Cover 1 x Power Cord 3 x Allen Key (H1.5, H2, H2.5) 1 x 7mm Spanner 1 x Flat Head Screwdriver 1 x 0.4mm Nozzle Cleaning Tool 1 x Desiccant 1 x Ethernet Cable 1 x Scraper 1 x Glue Stick 1 x USB 2.0 Flash Drive 1 x Spare Parts Kit 1 x Ordinary Hotend 1 x User Manual |
