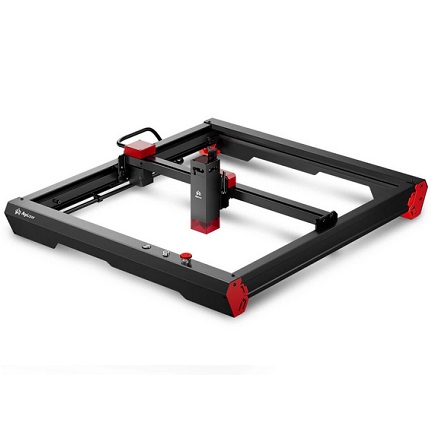

Features: 1. High-Efficiency Cutting and Engraving. With 22 W of high output power, this laser engraver shows outstanding cutting capabilities, effortlessly cutting through up to handle various material thicknesses for cutting easily. It accurately handles materials such as acrylic, metal, wood, and stainless steel, making it ideal for creative projects and precision manufacturing.
2. Fast and Precise. Engraving laser engraver reaches speeds up to 20,000 mm/min. Precision rails ensure detail accuracy, meeting diverse needs from fine art to large-scale production, and upholding stringent standards for efficiency and quality.
3. Safety Features. Laser engraver includes six advanced safety mechanisms: ①Limit Switches: Prevents collisions with X&Y-axis controls. ②Flame Stop & Alarm: Activates upon fire detection. ③Tilt Detector: Halts operations if tilted over 20 degrees. ④Detector: Alerts and stops if the laser remains idle for over 5 seconds. ⑤Eye Protection: Features an acrylic cover and safety goggles. ⑥Emergency Stop Button: Enables immediate shutdown.
4. Multifunctional Connection and Interface. Laser engraver is equipped. It is compatible with LaserGRBL and LightBurn engraving software, supporting various connectivity options including Wi-Fi, USB, SD card, and direct computer connection. Using Wi-Fi, a single computer can control multiple devices simultaneously, performing various engraving tasks, significantly enhancing work efficiency.
Specifications:
Optical Power: 22W
Machine Power: 144W
Power Supply: 24V/6A
Maximum Engraving Speed: 20,000 mm/min
Maximum Motion Speed: 30,000 mm/min
Spot Size: At 3% power: X 0.06mm - Y 0.05mm; At 100% power: X 0.16mm - Y 0.14mm
Product Size: X585*Y674*Z200mm
Product Weight: 5KG
Laser Head Life Expectancy: >8000 hours
Certification: FCC/CE/RoHS/FDA
Warranty: 12 Months
Safety Features: Active Power-Out detection and protection, Laser Over-Exposure Time Limit, USB disconnect shutdown, Emergency stop button, Gyroscope detection, Motherboard over-temperature protection
System Supported: Android, iOS, Windows, Web-based
Control Software: AlgoLaser App / LightBurn/LaserGRBL
Compatible Accessories: 22W laser module, Motorized Z-axis, Engraving Platform, Fireproof Box, Rotary Chuck, Rotary Roller
File Format Supported: JPG, SVG, PNG, BMP, G-code, CAD, AI, CDR, DWG, etc. packing list:
| ALM-10BD(10W) |
| Laser Module*1 |
| AirAssist Nozzle*1 |
| Air Pipe * 1Lens * 1 |
| Focus Assist *1Laser |
| AlgoLaser Air pump(AAP 1.0)*1 |
| Plywood * 1(340mm*220mm*3mm) |
| Acnylic*1(175mm*122.5mm*3mm) |
| Cable Ties *5 |
| Metal Card *3(86mm*54mm*0.2mm) |
| Hoop and Loop Tape * 3 |
