MK808BT PRO Hardware Specification:
Brand: AUTEL
CPU: Rockchip RK3566
RAM:4G
ROM:64G
Battery Capacity:5000mAh
Android Version:Android 11
Screen Size:7inch
Wifi:2.4 & 5 GHz
VCI:VCI MINI
Recommended Use ：Indoor
Operating System：Android11
Processor：Cortex-A9 processor (1.5 GHz)
Memory：64GB
Display：7-inch LCD capacitive touchscreen with 1024 x 600 resolution
Connectivity: Mini USB 2.0 / Wi-Fi / HDMMI Type A / Micro SD card (supports up to 32GB)
Sensors：Light sensor for brightness auto changing, Ambient light sensor for brightness auto adjust
Audio input/output：Input: N/A Output: Buzzer Beep
Power and Battery：3.7 V/5000 mAh lithium-polymer battery Charges via 5 VDC power supply
Tested Battery Life：Around 4.5 hours of continuous use
Battery Charging Input：5 V/1.5 A, Charges via 5 VDC power supply
Power Consumption：600 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
Operating Temp：0 to 55°C(32 to 131°F)
Storage Temp:-20 to 60°C (-4 to 140°F)
Operating Humidity:5% - 95% non-condensing
Dimensions (W x H x D):237.8 mm (9.4”) x 148.6 mm (5.9”) x 35.5 mm (1.4”)
Net Weight:788 g (2.42 lb.)
Protocols :ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Diag-H Protocol, TP2.0, TP1.6
Features
- Extraordinarily powerful Rockchip RK3566 CPU, 2.4 & 5 GHz Wifi
- 7-inch LCD capacitive touchscreen with 1024 x 600 resolution display
- Internal reliable 64GB On-board Memory, RAM 4G for better performance
- Unique ergonomic design with rubberized outer protection and a rugged internal housing
- Android 11 Operating System for fast boot-up and multitasking
- Extensive vehicle coverage for more than 150+ US, Asian and European vehicle makes
- Bi-Directional Control(Active Test)
- Complete capabilities for codes, live data, electronic control unit (ECU) information, and vehicle control systems, etc
- Data Manager saves customer and vehicle records, scanner data and technician notes for future review
- Read/clear codes for all available systems
- Displays live data in text, graph & analog for easy data review
- Auto VIN technology automatically identifies the vehicle’s make, model and year
- Relearns parking brake pad position after replacement
- Supports IMMO functions
- Supports forced diesel particulate filter regeneration and injector adjustments
- Reset Steering Angle Sensor (SAS)
- Reset service mileage and service intervals
- TPMS Reset
- Supports battery registration and reset
- Support Multi-language
- 1 Year Free Update & Warranty
- MK808BTPRO is the upgrade version of MK808 MK808S and MX808, the MK808BT Pro can do the wireless diagnostics through the BlueTooth VCI, while the MK808 MK808S can't.
Package Include：

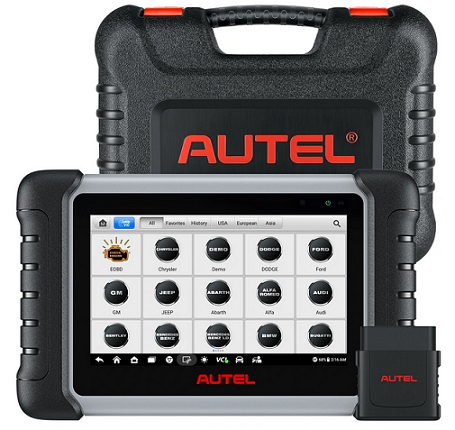

AUTEL MK808BT PRO Tablet *1
USB External Power Adapter_test*1
USB Cable (for charging)*1
USB Cable (for test)*1
MaxiVCI Mini*1
User Manual*1
Quick Reference Guide *1
