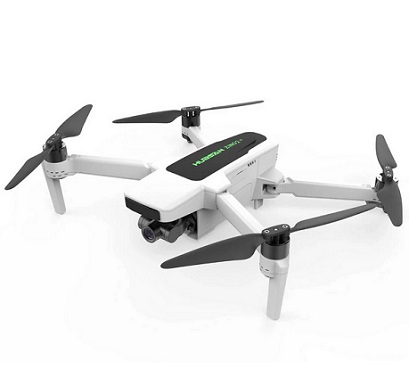

Hubsan ZINO 2

Size

32.60 x 26.00 x 9.49 cm

Weight (Propeller + battery)

929g

Motor

Brushless Motor

Maximum Take-off Altitude

5000m

Max Flying Time

35mins (windless)

Max Hovering Time

32mins (windless)

Max. Endurance Mileage

20km (50km/h windless cruising)

Wind Resistance

5-level

Max. Tiltable Angle

25 degrees (normal mode);
35 degrees (sports mode)

Max. Rotational Speed

150 degrees/s

Max Flying Speed

Movie mode: 1m/s
Normal mode: 12m/s
Sport mode: 20m/s

Max Ascension Speed

Normal mode: 3m/s
Sport mode: 5m/s

Max Descent Speed

Normal mode: 2m/s
Sport mode: 3m/s

Working Temperature

-10 Deg.C - 40 Deg.C

Working Frequency

5.725 - 5.850 GHz

Positioning

GPS + GLONASS

Camera

Image Sensor

1/2.3 inch CMOS sensor

View Angle

80°

Equivalent Focal Length

24-48mm

Aperture

F/2.2 TTL 23 mm

ISO Range

Photography: 100-1600 (automatic); 100-3200 (manual)
Video: 100-3200 (automatic); 100-3200 (manual)

Shutter Speed

1/8000 - 1/30

Resolution

4K: 3840*2160 30/60fps /
2.7K: 2704*1520 30/60fps /
1080P: 1920*1080  30/60/120fps /
720P: 1280*720 30/60/120/200fps

Video Maximum Bitrate

100Mbps

Support File System

FAT32

Image Format

JPEG/DNG

Video Format

MP4 / MOV (h.264 / mpeg-4 AVC)

Gimbal

Structural Design Range

Pitch: -135 degrees to 45 degrees;
Roll: -40degrees to 40 degrees;
Shift: -35 degrees to 35 degrees

Controllable Rotation Range

Pitch -90 degrees to 0 degrees

Stability System

3-axis gimbal

Maximum Control Speed (Pitch)

100°/s

Angle jitter

±0.01°

Image Transmission

Image Transmission System

SYNCLEAS

Distance

9KM

Transmission power (EIRP)

<=26dbm

Band

5.725-5.850 GHz

Battery

Capacity

3800 mAh

Nominal Voltage

17.4V (4S)

Charging Limit Voltage

17.6V

Battery Type

intelligent lithium battery, accurate calculation of battery power,
ensure the safety of battery life

Energy

66.12Wh

Weight

310 g

Charging Environment Temperature

-10 Deg.C- 40 Deg.C

Maximum Charging Power

52.2W

Charger

Input Voltage

100V-240V
