About This Product

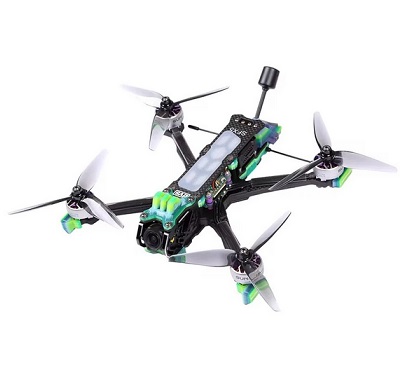

Our new SFX5 X Type Drone just got better! Another major advancement in FPV imaging via DJI powered by our upgraded frame and electronics. A new standard of Bind-And-Fly drones that are easy to get started with, but also with the durability and performance for enthusiasts. Welcome to the DYS experience!
Specifications:
Brand: DYS
Model: SFX5
Item Name: 5 inch Freestyle FPV Racing Drone
Flight Controller: F722
ESC: 4in1 2-8S AM32 65A ESC
Video Transmission: DJI O3 Air unit
Frame Wheelbase: 225mm (Squashed X)
Motor: SUNFUN V2 2207 1850KV 6S
Prop: 5 inch Propellers
Weight: 425 g
Takeoff Weight: Approx. 610g
Diagonal Spacing: 225mm
Maximum Speed: 190 Km/h (Manual Mode)
Maximum Takeoff Altitude: 5000 m
Maximum Hover Time: Approx. 8 minutes
Maximum Flight Distance: 5km
Maximum Wind Speed Endurance: 100km/h (Level 5)
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: Dual Antennas
GNSS: GPS + Galileo
| Video Transmission System |
Product Name: DJI O3 Air Unit Weight: Approx. 290 Grams (Headband Included) Dimensions (L×W×H): L167 * W1039 * H 813mm Screen Size (Single Screen): 0.49 inches Resolution (Single Screen): 1920 × 1080 Refresh Rate: up to 100Hz Interpupillary Distance Range: 56-72mm Diopter Adjustment Range: -8.0 DA + 2.0 D FOV (Single Screen): 51 ° Communication Frequency: 2.400-2.4835 GHz;5.725-5.850 GHz Transmitting Power (EIRP): 2.4 GHz: < 30 dBm (FCC), < 20 dBm (CE/SRRC/KC) 5.8 GHz[4]: < 30 dBm (FCC), < 23 dBm (SRRC), < 14 dBm (CE/KC) Maximum Transmission Rate Video: 50Mbps Operating Temperature Range: 0° to 40° C (32° to 104° F) Power Input: 7-9V (1.5A) |
Features:
1. Smooth and Powerful SUNFUN V2 Motors.The latest upgrade of our best-selling SUNFUN V2 2207 motor, integrated rotor technology, strong titanium alloy shaft, collision-resistant 7075 aluminum housing, smooth Japanese NMB bearings, N52H curved arc magnets with center slot.
2. Latest SFX5 frame for maximum protection,DJI O3 HD Air Low-Latency Digital Transmission Unit.
3. Up to 10km video transmission range, enjoy a crisp, smooth real-time view on your goggles, even in interference-ridden environments. (Source DJI)
4. Stabilized 4K video with 155° ultra-wide-angle.
5. Coupled with high-quality image performance, it delivers exceptional footage that will keep your audiences on the edge of their seats. (Source DJI)
6. Heatsink specially designed for the DJI O3 HD Air unit.
Package Included:
1x SFX5 5 Inch Drone
1x Battery Pad
2x Propeller CW
2x Propeller CCW
2x Battery strap
