Features:

1. Enhanced Accuracy: Our DG852 Pro series function/arbitrary waveform generator boasts a sampling rate of up to 625MSa/s and a 16-bit vertical resolution, offering highly precise waveform output and making it an excellent value choice for entry-level signal sources.

2. Large color Touch Screen: This product is equipped with a large 7-inch color touch screen, providing convenience for setting parameters, and viewing and editing signals across dual channels simultaneously.

3. Type-C Power Supply: Furnished with a Type-C power supply interface, this waveform generator supports portable power supply, making it suitable for field testing.

4. Portable Design & Quick Rise Time: With its compact and extra-portable design, this signal generator supports standard monitor bracket usage saving your workspace. It produces a square wave of 40MHz and an adjustable-edge pulse wave of 25MHz with a waveform rise time as low as 3ns, fulfilling various waveform needs.

5. Low Jitter & Rich Modulation Functions: Based on RIGO's unique SIFI ll technology, the DG922 Pro/852 Pro series can generate arbitrary wave point by point, accurately restoring signals with ultra-low jitter. It supports rich modulation functions (AM, FM, PM, ASK, FSK, PSK, PWM, SUM modulation), and meets the requirements of communication principles, motor control, switching power supply, and other application scenarios.

Specifications:

Output Frequency: up to 50MHz

Channel Number: 2CH

Sampling Rate: 625MSa/s

Vertical Resolution: 16bits

Arbitrary Wave Length: 2M(8M opt.)

Product Size: 266mm (W) x 165mm (H) x 63mm (D)

Product Weight: 1.78kg

Package included:

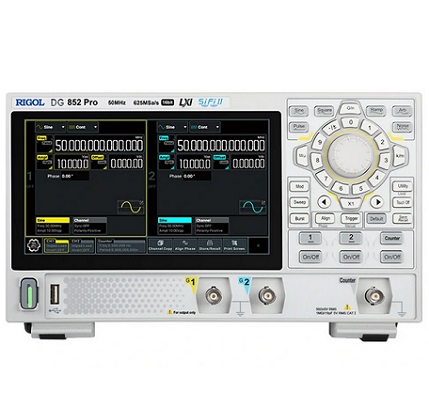

1 x DG852 Pro Series Waveform Generator

1 x Type-C Cable

1 x User Manual
